Clamping cauls: The secret to great glue-ups
The answer is not fancier clamps or specialized jigs; it is shopmade clamping cauls.
Mar 08, 2011
For more tips on using cauls, read Hendrik Varju’s article from FWW #218. In the article, he explains how to use them for gluing edge banding (pictured here), dado joints, dovetails, and through tenons.
Woodworkers spend a lot of time cutting accurate joinery. Yet even the most accurately cut joint won’t be perfect if you glue it together incorrectly. Not only must you put the right amount of glue in the right places, but you also need to do the same with the clamping pressure. Some joints, such as dovetails, need pressure only in isolated spots, while others, such as thin edge-banding, need even pressure over the whole area. The answer is not fancier clamps or specialized jigs; it is shopmade clamping cauls. Quick to make and easy to use, cauls not only pull a joint tight and keep it at the correct angle, but they also protect the workpiece from direct contact with the clamp jaws.
Curved cauls spread pressure
Everyone builds plywood boxes eventually. In some cases, you can use simple butt joints and biscuits to join the pieces. If the cabinet is going to be painted or if the sides won’t be exposed, you can use screws or nails to hold the biscuited assembly together while the glue dries. However, for maximum strength and clean looks, you probably will opt for rabbet and dado joints, and you’ll need clamps for the glue-up. In that case, you’ll have to plan the assembly more carefully. For deep cases, use convex curved cauls, which will extend pressure to the center of interior panels. Curved cauls also can distribute pressure along a long edge, bailing you out if you don’t have enough bar clamps. You can curve a caul with a few passes of your handplane or belt sander. Put glue in the rabbet and dado joints, with just a touch along the end grain of the horizontals. Excess glue will squeeze out into tight corners, causing problems later. After clamping, check the diagonals and make any necessary adjustments.
Some might ask how much curve cauls need to have in them to be effective. Straight shooter Gary Rogoswki puts it into perspective for us “I’ve found that tapering the cauls by 1/8 in. to 1/4 in. at their ends gives plenty of curvature, but don’t be afraid to experiment.Frankly, I spend more time thinking about the national debt than I do about making the curves symmetrical.” So don’t worry fret too much about making your curved cauls perfect.
Two ways to make curved clamping cauls
In this video Asa Christina demonstrates how he makes shopmade cauls on the jointer.
Ben Strano has found that his cauls all eventually wind up in the kindling pile, so he’d rather not spend much time or effort on them. When he needs a curved caul, he makes them with scrap 2x material and a few passes with a handplane. By taking overlapping passes starting near the end of the board and working your way towards the center with each pass. Considering the cauls made in this video take 12 seconds a piece, it’s hard to justify not taking the time to make cauls just for one glue up.
Flat tabletops start with clamping cauls
The simplest cauls are great for tabletop glue-ups. When edge-gluing boards to make a solid-wood panel, you can use hardwood cauls about 1 in. thick by 2 in. wide by up to 30 in. long. Use them in pairs to sandwich the boards together and keep them flush while other clamps apply the main pressure to the boards’ edges.
Some woodworkers recommend putting a slight convex curve on the clamping faces of the cauls. For this job, it may not be necessary. After all, no great force is being applied; you are only using the cauls to hold the boards flat, not bring them together. However, for panels wider than about 30 in., cauls are less effective. Splines, biscuits, or dowels will work better to align these boards, although they are more time-consuming.

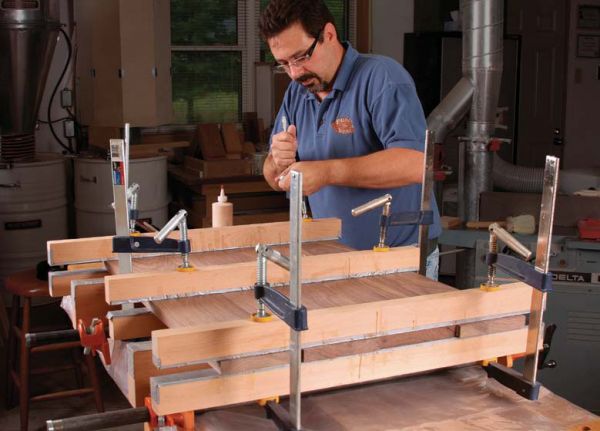

Cover the cauls’ clamping surfaces with packing or duct tape to keep them from getting glued to the panel as squeeze-out oozes from the joints. Use a pair of cauls at each end of the panel, but if the panel is more than about 2 ft. long, use a third set of cauls in the center.
For the clamping cauls at either end, have the clamps come in from the ends of the panel to get even pressure across all the joints. For the center pair of cauls, the clamps have to come in from the edges of the panel.
Clamp on the cauls and then apply the edge clamps. You don’t need cauls to protect the edges from these clamps because you will clean them up later. The greater force of the edge clamps will easily overcome friction from the cauls and bring the boards together.
Parts of this article are excerpted from Hendrik Varju’s article The Secret to Great Glue-Ups in issue #218. Read the full article here.
