Rack for Storing Parallel-Jaw Clamps
In my small basement shop, I had to find a way to store some Bessey clamps without taking up too much space. Because Bessey-brand clamps (and some similar parallel-jaw clamps) have a large hole through the end of the bar, it occurred to me that a swinging arm would be an efficient means to hold them. I built a rack, and it works quite well.

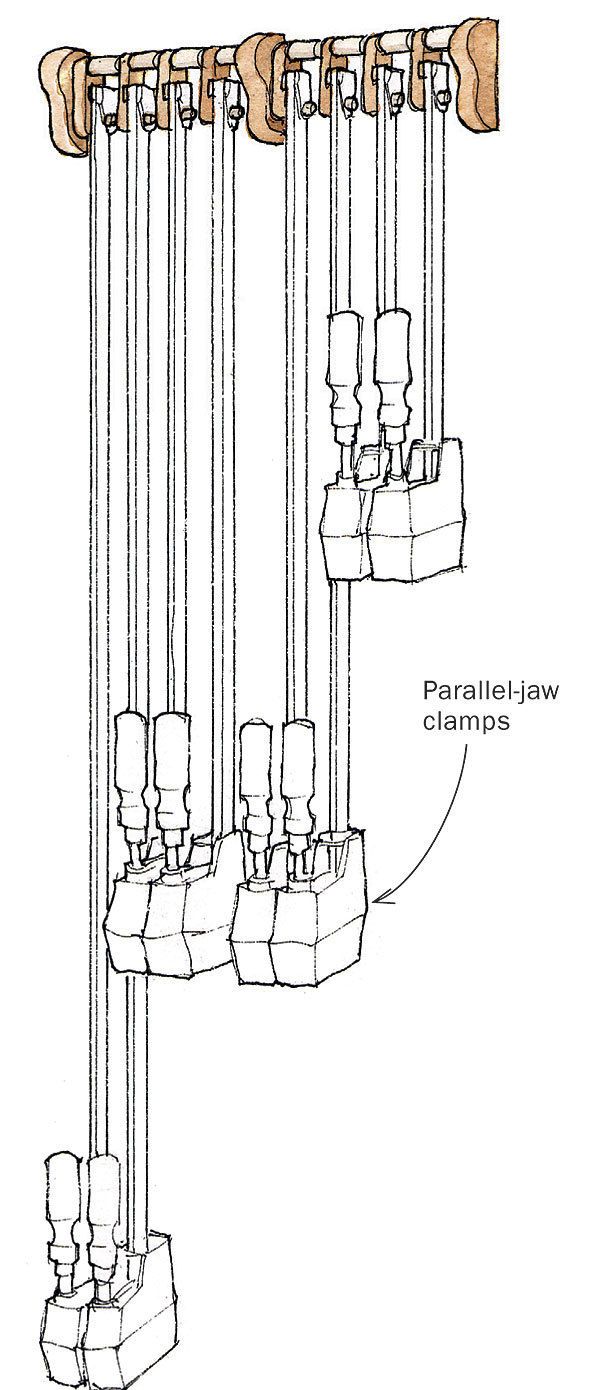

The rack consists of several arms that are strung together like beads on a metal rod. The arms are spaced apart on the rod with center-drilled 1-in.-dia. dowels, and the 1/2-in.-dia. dowels in each arm fit the holes in the clamp bars. The entire assembly is supported by wooden brackets. To remove a clamp, grab the bar, lift the swing arm away from the others, and slide the clamp off the dowel.
