My first CNC Machine
Mar 17, 2012

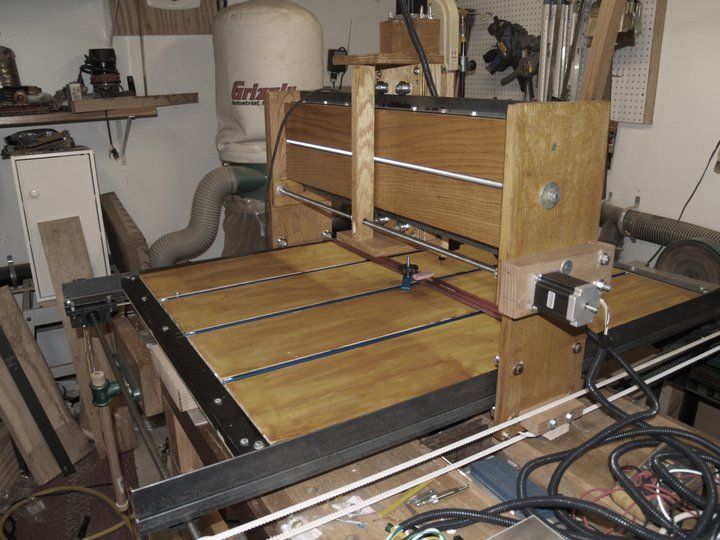

The first interation of my design
This was my first design for a home built CNC router. The project took about 4 months to complete and a little longer to create my first project which was a simple address plaque. There were small issues I noticed after making the plaque which were addressed. I will be posting the updated CNC machine soon.
This site is protected by reCAPTCHA and the Google
Privacy Policy and
Terms of Service apply.
-

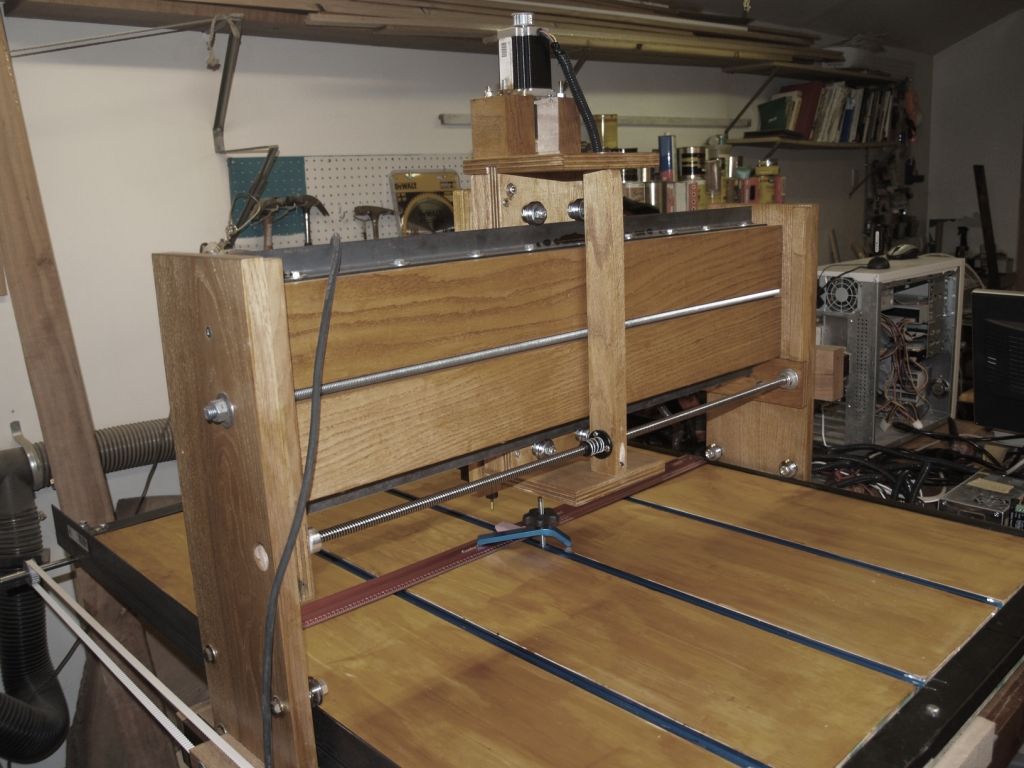

The first interation of my design
-
The wood design was nice but there were issues with some of the wood being too soft to handle the stress placed on the bearings.
-

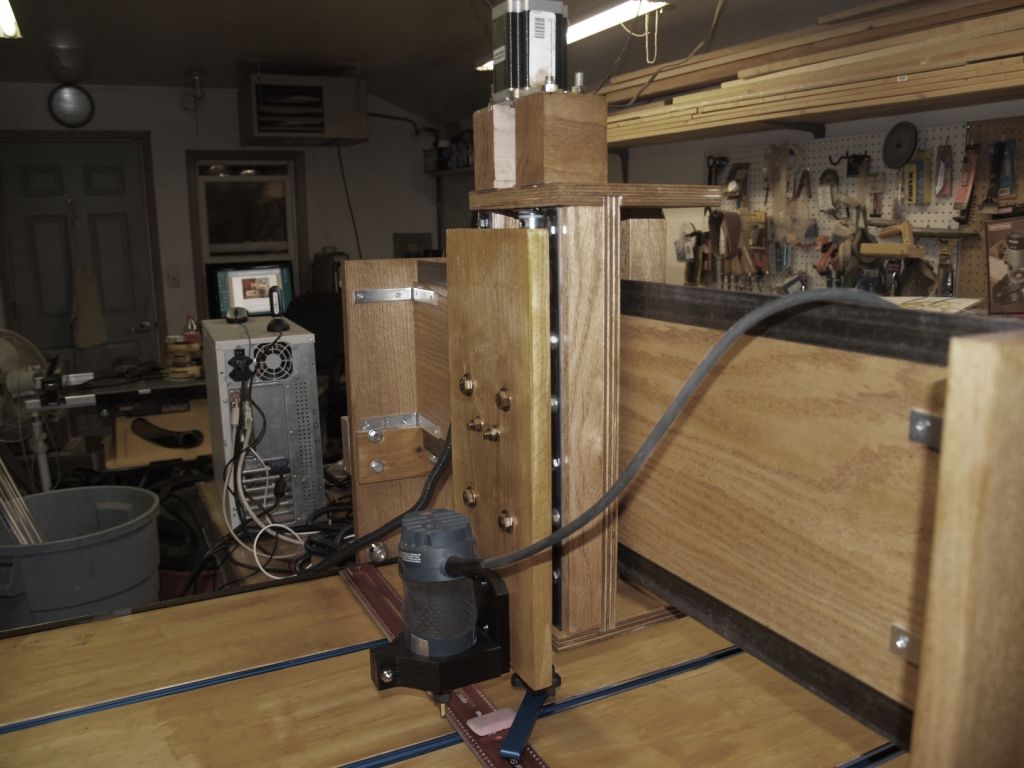

The Z-axis design.
-

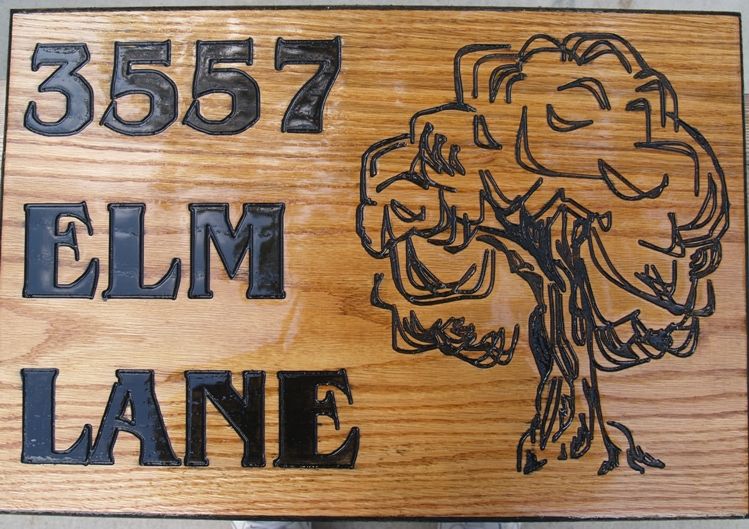

The first project, The text is as originally designed the font was not the best choice but the updated CNC project will show a nice flowing script font.
