Table Saw Multi-Jig
Aug 15, 2010
As you can see it rides my fence.
This jig can be used to cut tenons, make raised panels and even do mitre spline cuts. All made from scrap I had in the shop.
This site is protected by reCAPTCHA and the Google
Privacy Policy and
Terms of Service apply.
-

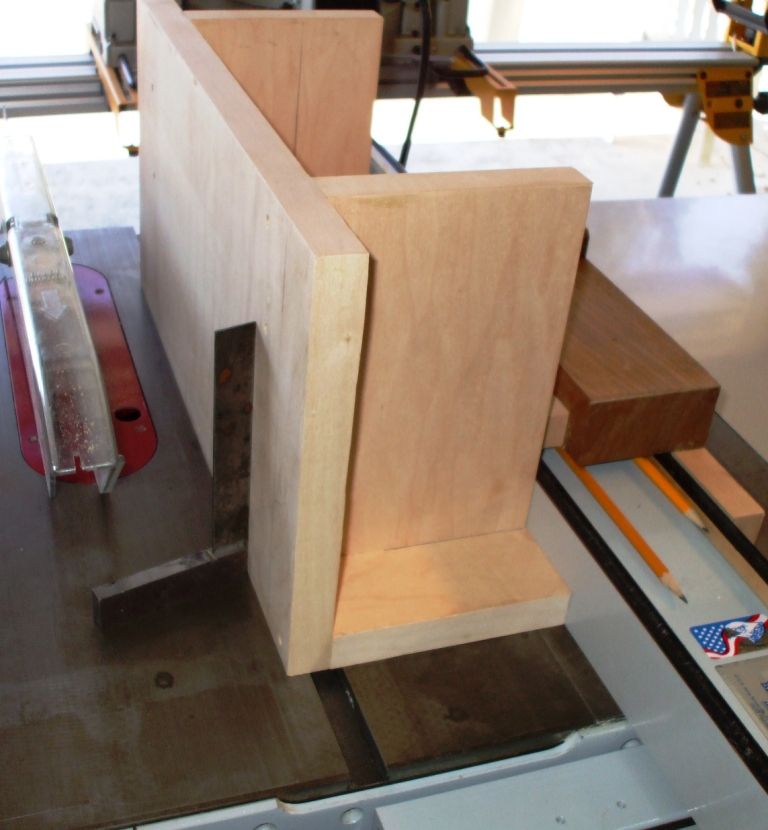

As you can see it rides my fence.
-

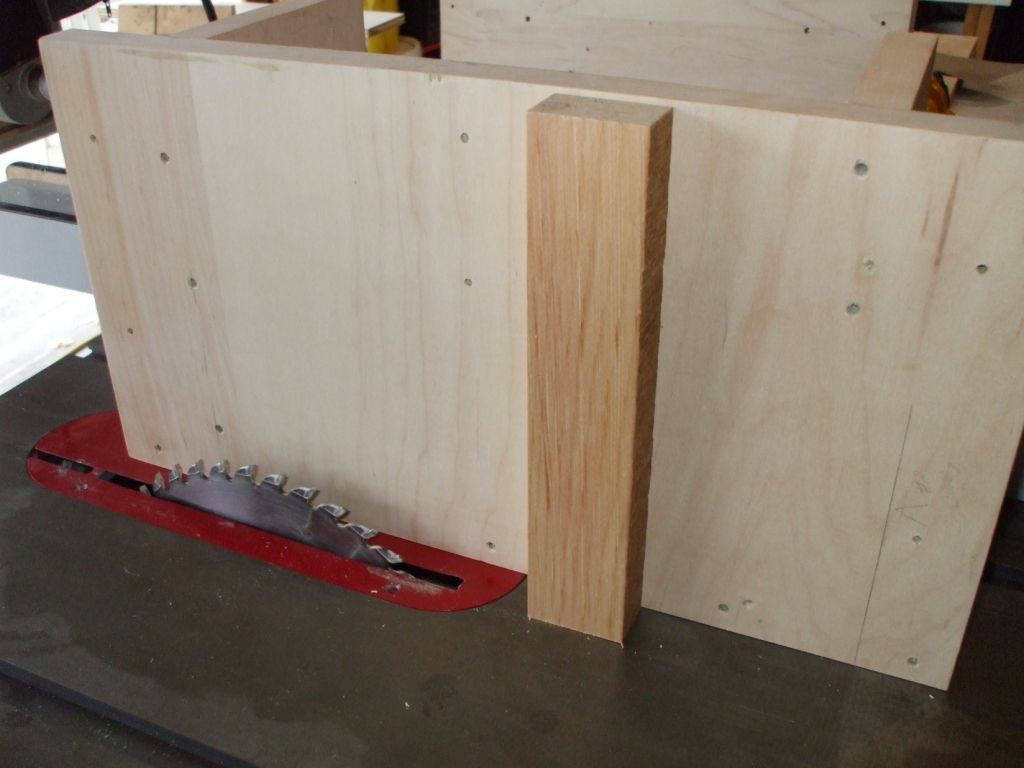

Here it is with a sacrificial backer for cutting tenons. A small clamp is added to the sacrificial backer to hold the stock in place.
-

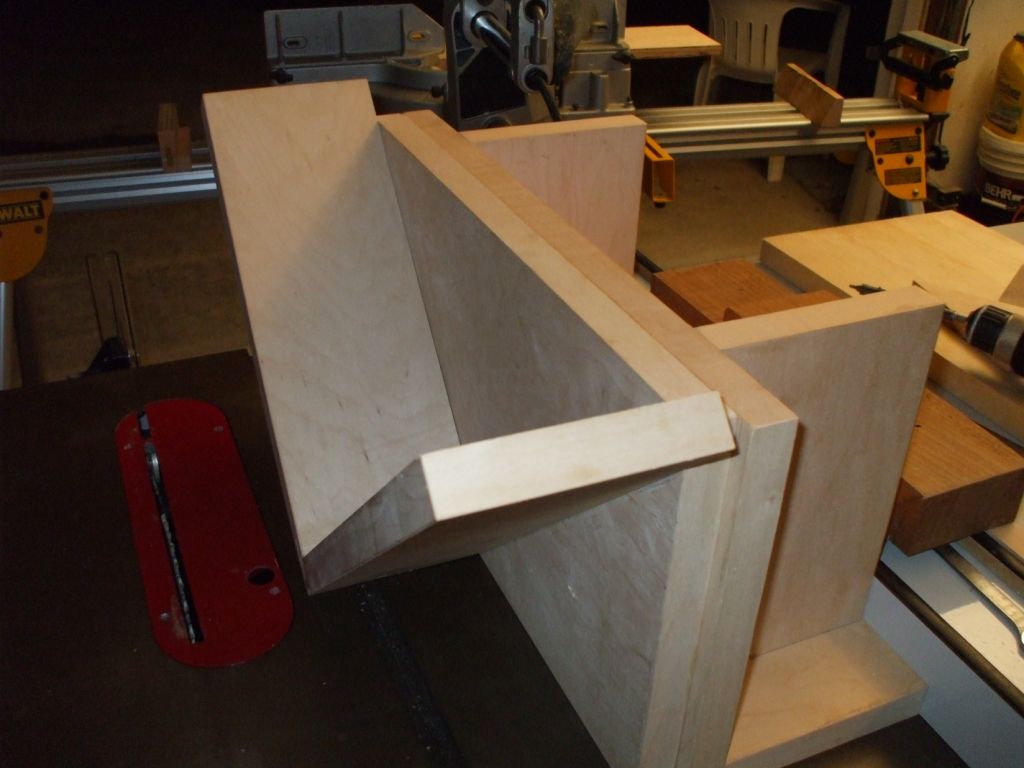

Here it is with the miter spline attachment
-

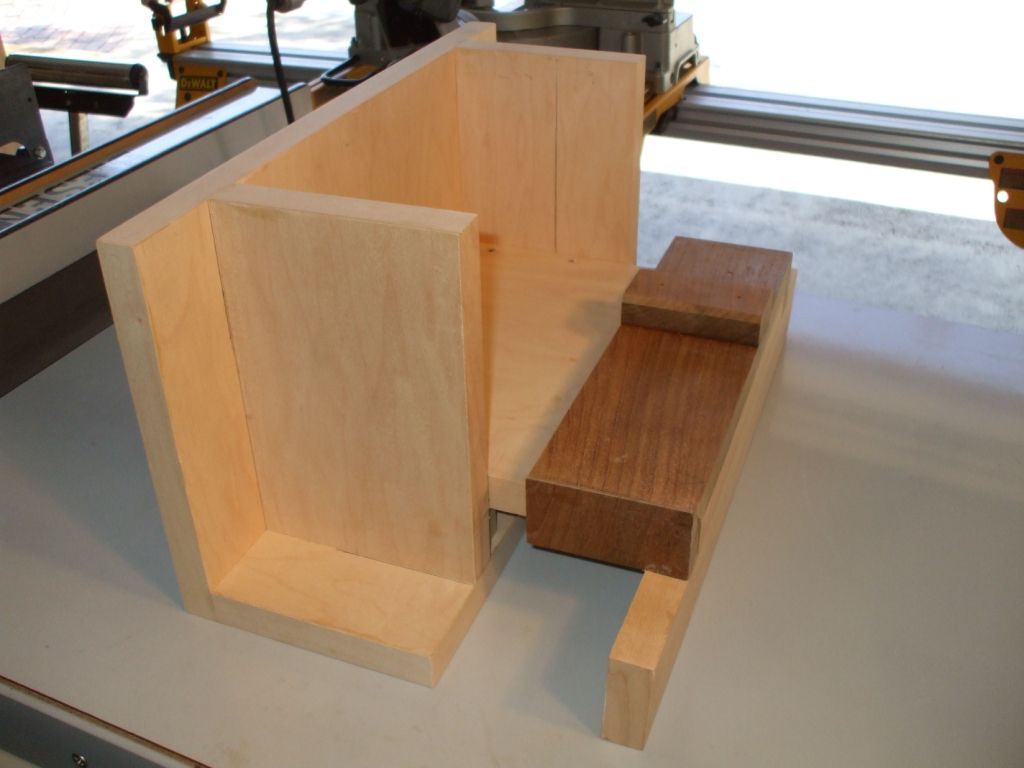

The body was made from scrap 1" poplar cored maple ply. The push block on the right is teak. When is use both hands are well protected from the blade.
-

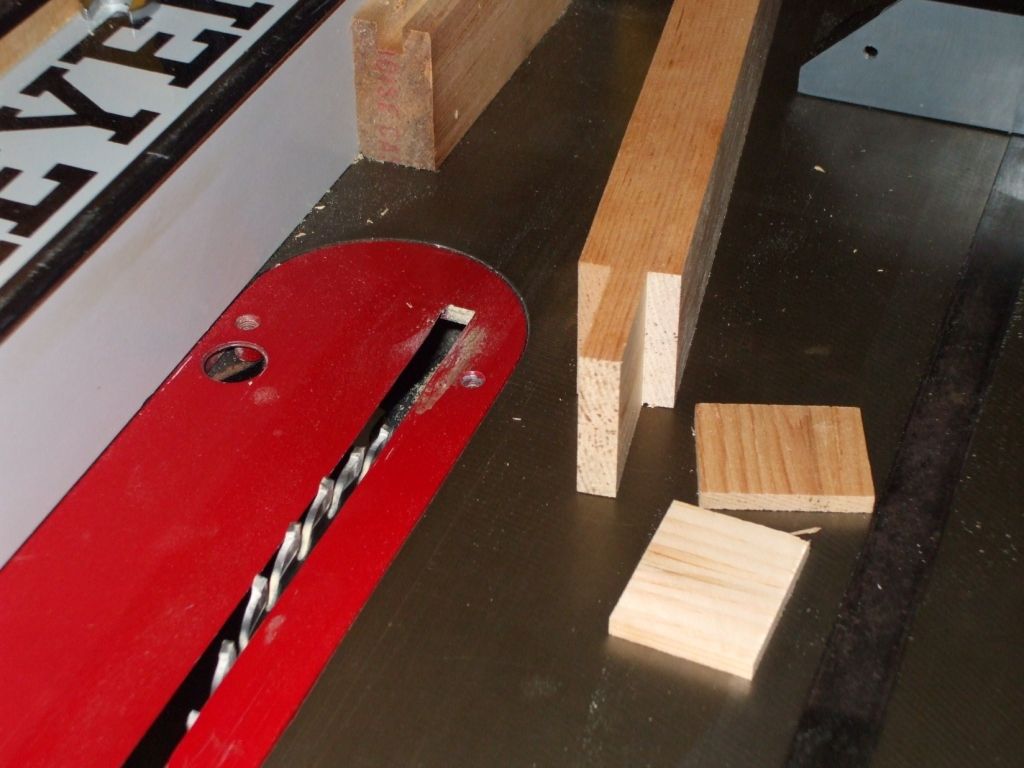

Test Tenon....
