Woodpeckers Inc. - Router Table Model 928

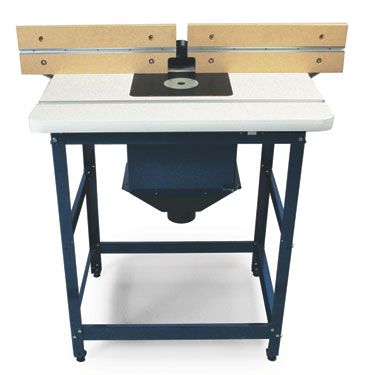

A free-standing router table with fence accessories.
For the small shop, a table-mounted router can do all that a shaper can and maybe more. Raised panels, box joints, dovetails, mortises, tenons and moldings are but some of the operations possible with a router.
It’s not too difficult to cobble together a workable shopmade router table. But it may lack some features available from a commercially made table. There are many tables to choose from, everything from basic units costing about $50 to setups costing $500 or more, depending on the options. I looked at 15 tables for this article.
All router tables operate on the same basic concept. A router is mounted upside down, usually on a removable baseplate, although a few mount directly to the tabletop. For many operations, the router table is used in conjunction with a fence.
Most router tables are mounted to a stand, either a short one for benchtop use or a table-height one for freestanding units. Some router tables can be attached directly to the extension wing of a tablesaw. A benchtop model is good for its portability and small footprint. But the best of the freestanding units have larger tabletops and provide a more stable work surface.
The top on the Woodpecker is the thickest of all the MDF tables and stays quite flat. The baseplate is also nicely made, but the fence clamps are awkward to use.
Model No. 931 fence
