Doors are what we see when we look at a cabinet. Thanks to their relatively large surface area, they’re the most visible component in many projects, and they will make a lasting impression if you design them carefully and thoughtfully.
In addition to looking good, doors must function properly. A well-made door opens with little resistance, closes without clatter or fuss, and has a comfortable pull that fits the hand.
Begin by choosing the style of door you want: overlay, rabbeted, or flush. After that, it’s a design exercise in proportioning components carefully, choosing the appropriate joinery, and understanding wood movement.
The illustrations on the following pages will help you work out the best door design for whatever project you’re planning. This guide covers frame-and-panel doors, the most popular type, used in many furniture styles and periods. Some of the design considerations, however, also apply to slab-style plank doors and veneered doors.
Begin with Good Proportions: Because doors are the focal point of many pieces, it’s important to proportion them so they will work in harmony with each other and with other case components. People frequently make doors and their case openings too wide or, less commonly, too tall. Whenever possible, divide the case opening into reasonable sections and build the doors to suit.
Mounting options: For fine furniture and cabinets, there are three main options. Flush and rabbeted doors are seen in contemporary as well as period furniture. Overlay doors are used most often in kitchen and bathroom cabinets. Each style has some pluses and minuses when it comes to fitting and mounting.

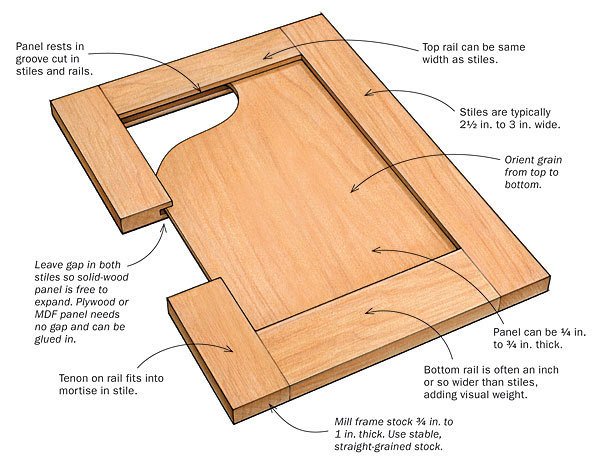

Basic Door Anatomy: In frame-and-panel door construction, a narrow outer framework surrounds and captures a wide panel. The vertical frame pieces are called stiles; the horizontal pieces, rails. The panel can be made of solid wood, plywood, or medium-density fiberboard (MDF). Typically, stiles run full-length and are mortised for tenons on the rails. But you can reverse that for aesthetic reasons: On paired doors, for example, full-width rails add a visually unifying element. Full-width rails also provide better screw purchase for knife hinges.
