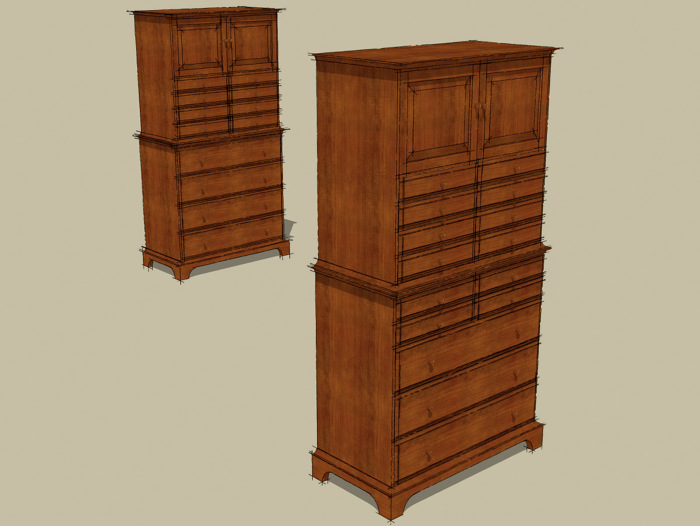

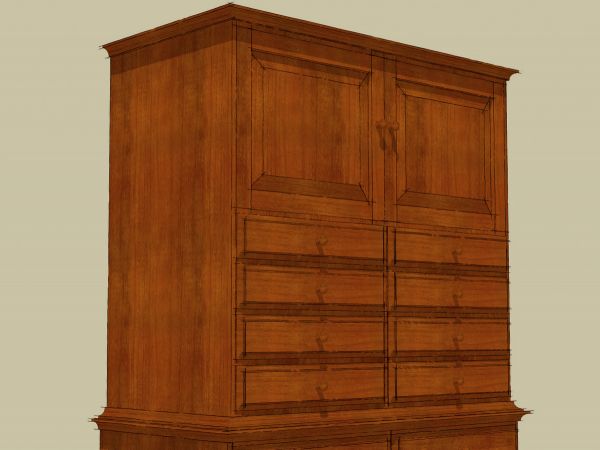

Recently there have been some questions regarding the use of Follow Me to add a molding around a cabinet. I did a quick little video demo that will hopefully clarify and perhaps even expand your skills with the Follow Me tool.
First, a couple of notes regarding the video. I already had the molding profile drawn and made into a component before starting the video. When I made the molding profile a component, I adjusted its axes so that the insertion point was at the top inside corner of the molding. This allowed me to place the profile quickly and accurately when I brought it into the model. See my blog entry on Axes for details on changing the axis location for a component.
I frequently field questions from new users who have made a component of a molding profile and when they go to use it, Follow Me will do nothing with it. There are two thing to remember. As with any component, you cannot change the molding profile without first opening the component for editing. Additionally, the path for Follow Me must be inside the same component definition as the profile. Alternatively, you could explode the profile component prior to drawing the path. When you have finished, though, remember to create a component.
Get woodworking tips, expert advice and special offers in your inbox
Become a member today
Get instant access to all FineWoodworking.com content.
Subscribe to Fine Woodworking
Save up to 56%
Sorry. I have no control over the type of advertising shown on the videos. The blog isn't part of the subscription. It is free to everyone. I suppose the alternative I have would be to quit doing the videos altogether.
If I'm paying for a yearly subscription to the online version of Fine Woodworking than why do I have to sit through a political advertisement in order to watch a video? THIS IS NOT A POLITICAL FORUM!!!!!!!!!!
Fortunately for me, I just stumbled accross your blog yesterday (unfortunately is wasn't sooner). It has some great tips and tricks and now that I know it is here, I'll be paying more attention and you may be getting some questions from me! ;)
@cmiller, Thank you for letting me know that. I'm very happy to know that it was helpful. I just wish I'd known you were having trouble sooner so I could have helped you avoid a lot of frustration. Happy Thanksgiving.
I know this article is a little old, but I can't begin to tell you how much time you have saved me with this. I do woodworking as a hobby and for the past couple years have been using sketchup to create my designs. I had always had problems drawing moldings that had miters. I know I have spent hours working on moldings...I knew there had to be a better way than what I was doing (you don't even want to know). I had tried using the Follow Me tool a few times with little to no success. This short video is exactly what I have been looking for. Thank you so much!!
Giovanni, without seeing your model I can only guess. If you'd like to send me the SKP file showing the failed attempt, I would be happy to take a look at it. Click on my name under the video.
Before writing this response, I drew up a four-sided frame and split it into separate pieces using the same method I showed in the video. I made a separate component of each of the four sides although if I were modeling a frame like that normally, I would only make a component for a short side and another for a long side. I would then copy and flip (not rotate) those components to make their counterparts.
Thanks for such an helpful tutorial, Dave.
Nevertheless I was not able to mold the internal side of a complete frame (four angles). I also tried to prepare two molded stiles and two molded rails cut at 45° to each end: any attempt failed!!
Do you (and anyone else) have suggestions about that?
Thanks to everyone
Thanks, I got it.
Jeff, I drew the path for Follow Me with the molding component open for editing. In the video, the path traces the top of the cabinet. After drawing those lines for the path, I selected them with the Select tool and then got the Follow Me tool. A single click on the profile with the Follow Me tool is all that is needed at that point.
Does that help?
Still don't get it. You say to select the component, the set the path. How do you set the path? Specifically what do you click to set the path?
Sure and thanks for the assitance.
George, I happy to know that the tutorial was timely for you.
As to the woodgrain materials I have, most are just picked up here and there. The one I used on these Thos. Moser pieces looks to me like old cherry but it is called Ash. I don't remember where it came from specifically. If you drop me an e-mail, I'll send it to you.
Great tutorial! I tried to do this on a friend of mine's project yesterday, but it didn't work out quite right. Your tutorial shows me where I went wrong.
On a side note, I use the free version of Sketchup 7 and am not able to locate the fill-textures that you used in the demo. Where did you, or where can I, get nice wood-grain textures for the projects that I work on?
ditto, thanks much
Thank you, very helpful!
