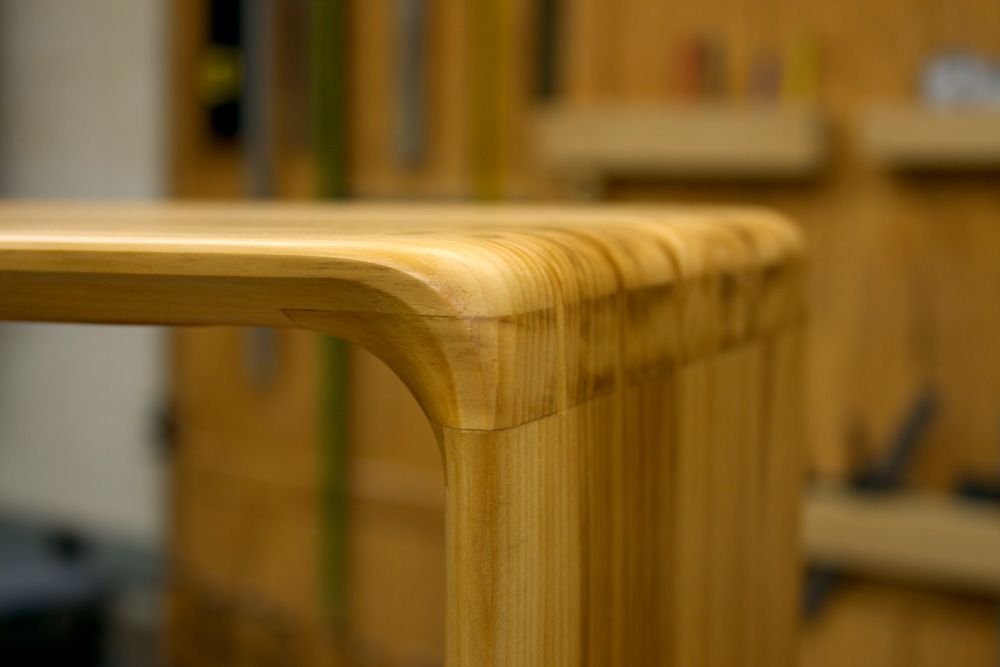

To achieve the look of a thicker, "bent" dovetail, I employed a quick and simple trick.
I had an idea for a curved dovetail technique, so I decided to try it out on a small nightstand. It’s a great way to use thinner stock and create the look of a thicker corner joint for “bending” dovetails. And if you’re looking for some resources on how to sharpen your dovetail skills before trying “bend” your joinery, be sure to have a look at some of our archived articles and videos on the subject.
Bending Dovetails: Step-by-StepClick any image for a larger version.

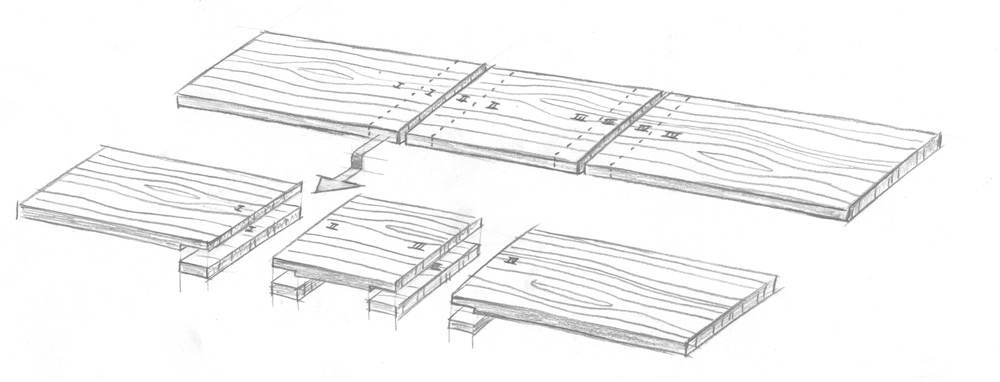

1A.) Begin by laying out the nightstand on a single 7/8″ thick board, adding 2″ to the length on either side of each dovetail joint.
1B.) Cut two inches off each end of the joint and label each cut-off. (This will be important later when matching end grain).

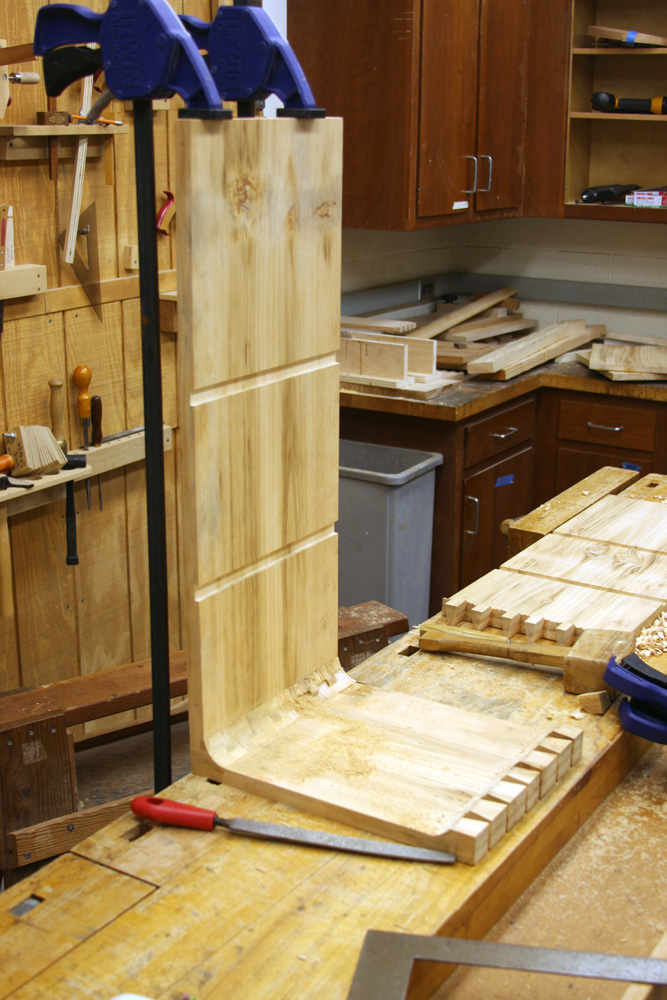

1C.) Cut a 1/4″ deep by 2″ long rabbet on the inside of each board end, and then cut the dadoes for the shelves. Then glue (in the same grain orientation) the corresponding 2″ long piece that was cut off of that board.(click to enlarge image)

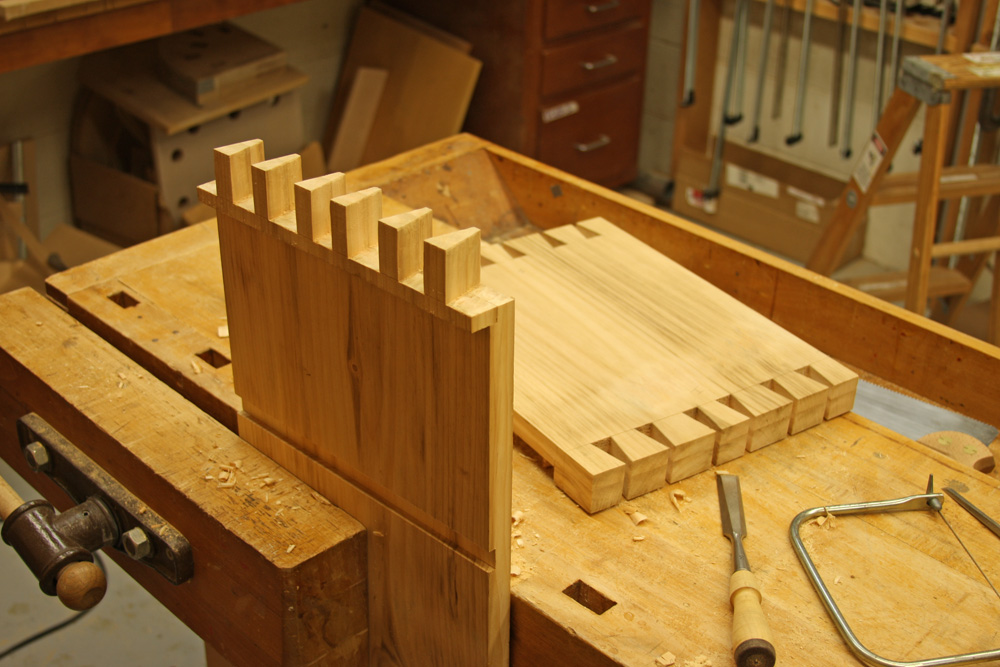

2.) Now mark and cut your dovetails as if you were joining two 1 3/4″ thick boards together.(click to enlarge image)

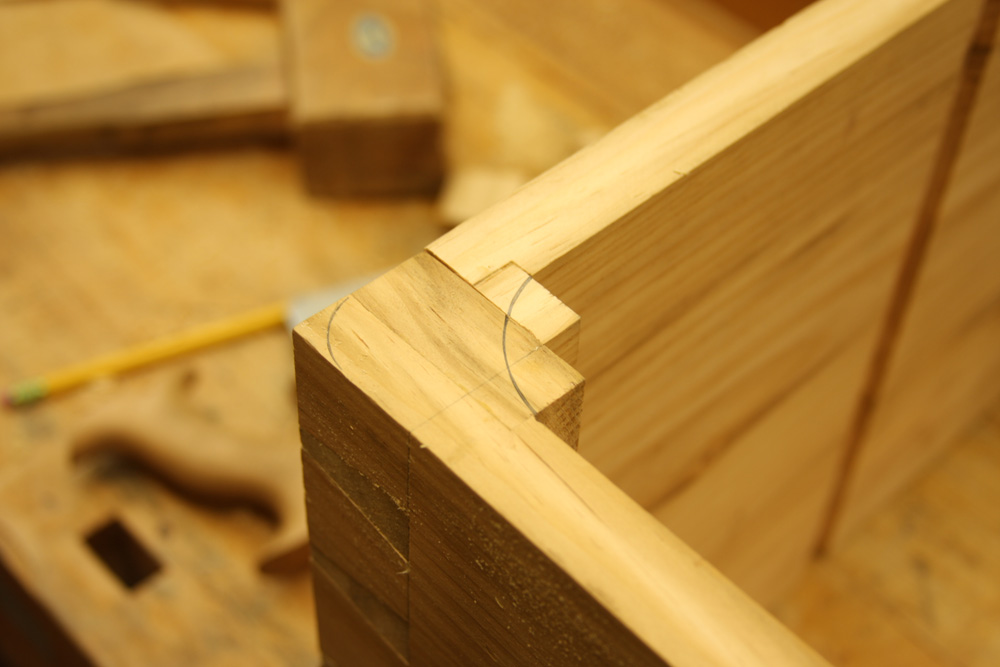

3.) Dry fit the dovetails and draw a curve to your liking.(click to enlarge image)

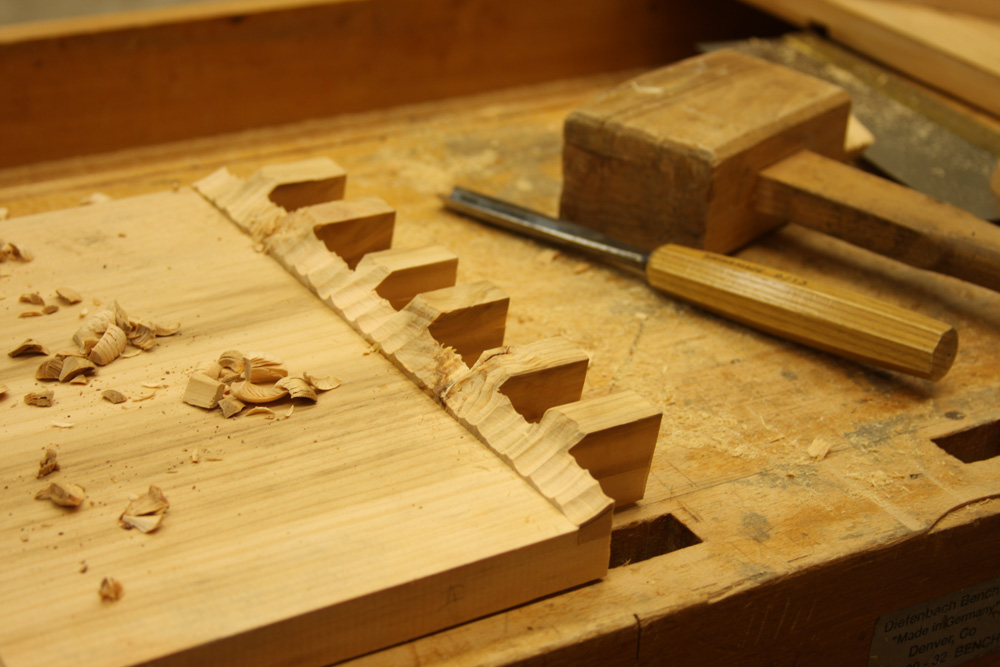

4.) Disassemble the joint and use a gouge to start removing the waste.(click to enlarge image)

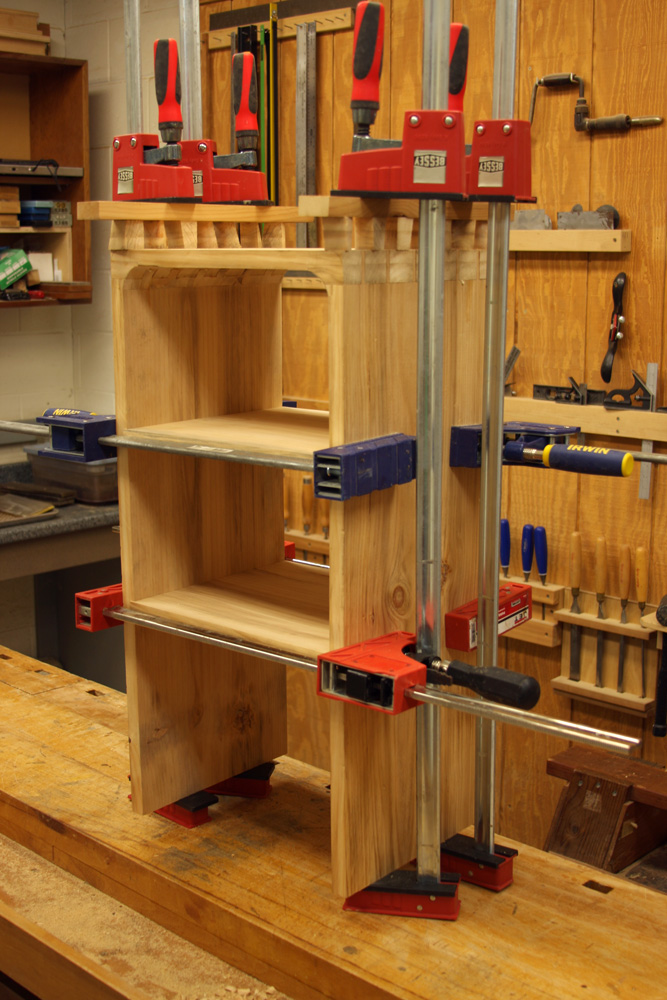

6.) Glue and clamp as usual. Here’s a quick tip: After you cut out the pins, use the waste pieces to construct simple cauls that will apply direct pressure to the tails.(click to enlarge image)

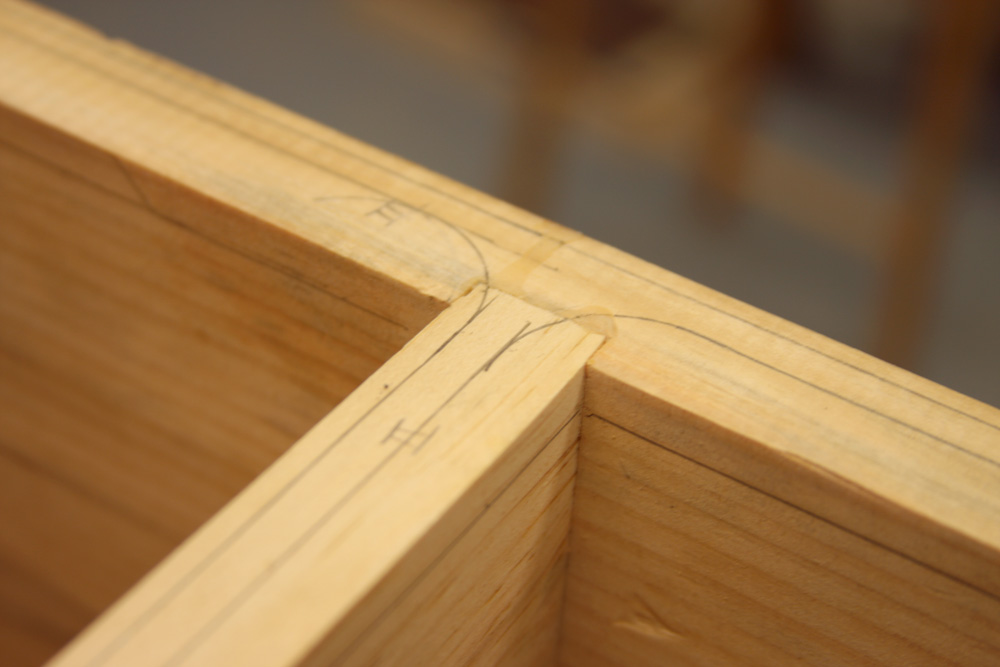

7.) Remove the clamps and draw guidelines on the front edge where you want to remove material.(click to enlarge image)

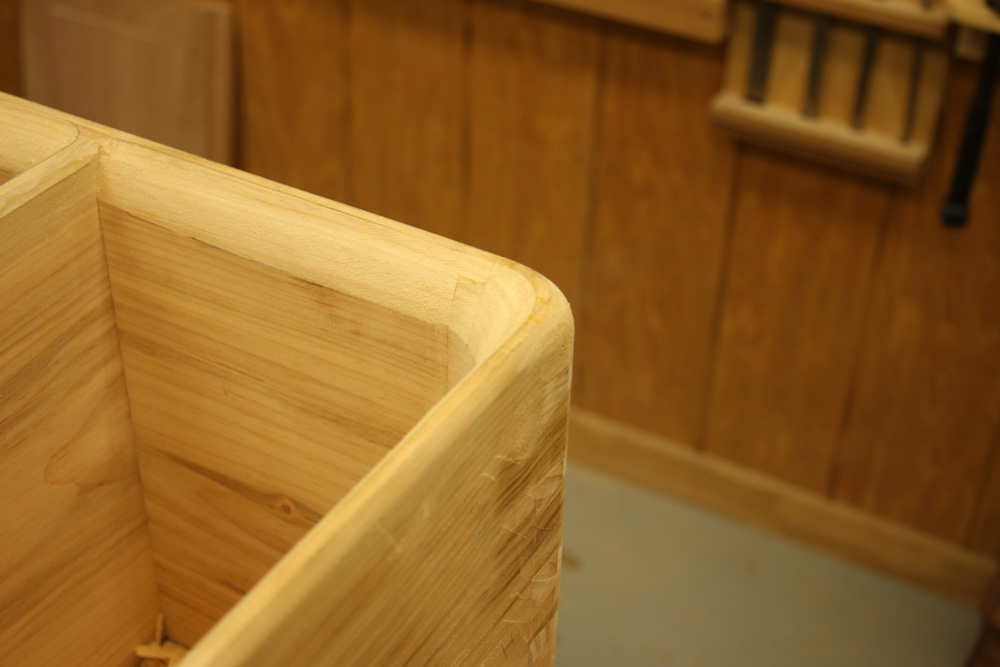

8.) Use a chisel and rasp to remove most of the material and then sand by hand to finish.(click to enlarge image)
After the glue up and shaping of this particular board, the end grain was a pretty close match. A straight and close grained board (walnut or mahogany maybe) would make it difficult to even see the glue joint using this technique. The straighter and closer the grain of the board you choose, the better it will “bend”, but I like being able to see how the joint is constructed either way.

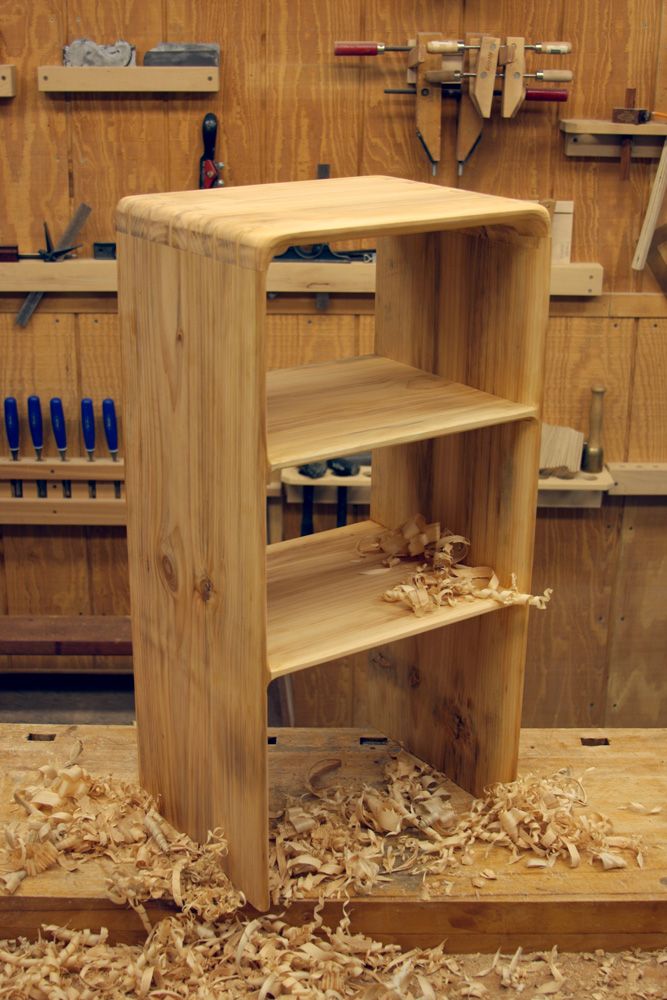

This simple technique allows me to add a nice, natural, organic-looking curve to an otherwise straight-forward case piece. It's pleasing to the eye and soft to the touch.
