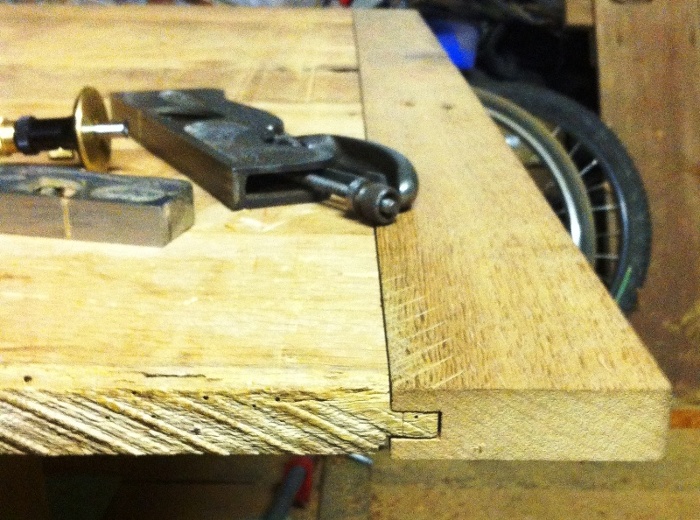

This table is built out of 100% solid white oak reclaimed from an old mule barn on our farm. The barn is around 100 years old so it makes for some interesting wood, cool spalting in areas. The Dimensions are 8’x4’x31″H. The top is composed of 8 boards, so to give it some overall rigidity I used 8x50mm slip tenons every 6″ between the boards along with the usual glue. The legs are composed of 6″x 4″ beams from the same barn, I milled them down to 5″X 3 5/8″ then shaped them by hand with , low-angle, round-bottom, and convex spokeshaves. I kept the original mortise at the bottom of each leg along with the original wooden (spike?) I removed the tenon. Breadboard ends were a necessity as this guy is sure to show movement. Doweled snug in the center cut slots towards the ends. Aprons standard mortise and tenon. Secured the top to the base with wooden cutoffs I had left over. Secured the blocks next to the legs on the short aprons with slip tenons cut wide to allow for movement, then screwed to the top to the top. Used slip mortises (not cut wide) and slotted screws next to the legs for the long aprons. So yeah the domino really came in hand on this project. Attached horse hames to all four corners through back of the aprons secured by four dowels in each. On the top I preserved areas of the original patina which show the sawmarks from the water-powered sawmill. top and aprons all finish smoothed with emmerich improved #4, had to use cabinet scraper on some knots, also used emmerich scrub plane to give it some texture in places.
Fine Woodworking Recommended Products
Bosch GCM12SD Miter Saw
Bosch has produced another quality miter saw. It not only fits tight to the wall; it also has the shortest distance to the miter lock. The saw’s generous miter range is complemented by its large selection of miter detents. However, it falls short in a few areas. The handle is nicely ambidextrous, but its large size may make it cumbersome for all but large hands. I also found the miter and bevel controls, including their locks, stiff. The saw is the only model in the field with no light, either an LED or laser.
This saw performs well and the ergonomics are good. I appreciated the easily accessed controls and nice, ambidextrous handle. The Grizzly employs two lights, a laser to guide the cut and an LED to illuminate the cutting surface. The visibility is good, although the LED does not cast a shadow, it just lights up the cutting area. The miter range and number of detents are nice. However, the bevel range extends to only 45° on each side and has no positive stops. The saw requires a good deal of clearance from the wall, which, like similar models, may make it tricky for smaller shops.
With a two-fence, double-ended design, you're able to set two distances on the same gauge. However, the small fences make this tool difficult to hold comfortably and securely against the edge of the work while scribing lines, requiring more focus and effort.
Accessing the knives on the Triton for changes was not difficult, but getting the knives out was tricky, because no magnetized handles were provided to lift the knives off the cutterhead. There is a 2-1/2-in.-dia. dust port, and chip collection was good when hooked up to a shop vacuum. The housing has an open top and just one return roller on top, making it impossible to stack boards there in between passes through the machine. Also, there is no gauge that indicates how much material you are removing in a pass, making it one of four planers that don’t offer this feature.
Original joinery from the beams in the mulebarn, which I used as legs.
This part wrecked my knuckles....there is a precarious balance of force vs angle one must maintain while getting the convex spokeshave through a knot in solid white oak. One in which I failed to achieve.... many times.
With its graceful curves, cabriole legs, and ornamental back splat, a Queen Anne side chair is a bucket list build for many woodworkers. Dan Faia had a very specific Queen…
Become an UNLIMITED member and get it all: searchable online archive of every issue, how-to videos, Complete Illustrated Guide to Woodworking digital series, print magazine, e-newsletter, and more.
Comments
Nice work William, I like the way you left the legs heavy and shaped them by hand. Don have much of this wood left? For a chair or hall table.
