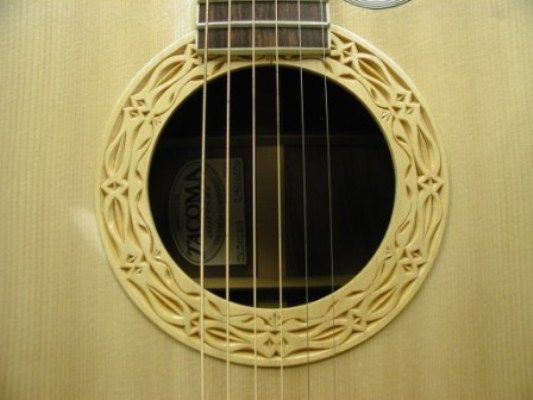

I didn’t build this guitar, but refinished it using shellac and a french polishing technique. While I had it apart and stripped down to bare wood, I decided to carve and install a chip carved rossette. It’s extremely thin and seated/glued into a circular rabbet about 128th inch deep. The initial carving was done with the basswood somewhat thicker (about 3/16″ – 1/4″) and then reduced further from the back side to make it just slightly thicker than the spruce top of the guitar. I routed a very small shoulder (rabbet) around the outside bottom edge of the carved rossette so it would overlap the recess that was routed into the top, making a perfectly clean round edge.
Fine Woodworking Recommended Products
Estwing Dead-Blow Mallet
A quality dead-blow mallet that packs and punch but isn't too heavy for furniture work.
This tool is designed for convenience. The battery and pins are easy to load, and the safety lock operates with the same finger you use to pull the trigger. The depth of set is adjustable, there’s a work light, and there’s a hook for hanging the tool on your toolbelt. A gauge lets you keep track of when you’ll need to recharge.
Sliding compound miter saws have become a woodshop staple. Their ability to squarely crosscut wide boards and to cut difficult miter and bevel angles is huge. Festool’s Kapex KS 120 REB fulfills these duties with aplomb. The design keeps the saw close to the wall, allowing for a small footprint. The cut is rigid and precise provided you use good technique. It accepts 20mm blades, about 10 1⁄4 in. Its maximum width of cut is 12 in..
- Detects dust levels to adjust fan speed - Filter life is monitored and displayed on tilted LED display panel - Bright LED display shows filter life, speed, and timer settings - LED Display is angled for easier viewing when ceiling mounted - Timer can be set up to 16 hours - Automatic air quality sensor adjusts the six speeds based on air quality - Two-Filter system with air diffuser that disperses air into a broader pattern - Captures particles down to 1 micron - LED notification of filter life updated by sensor

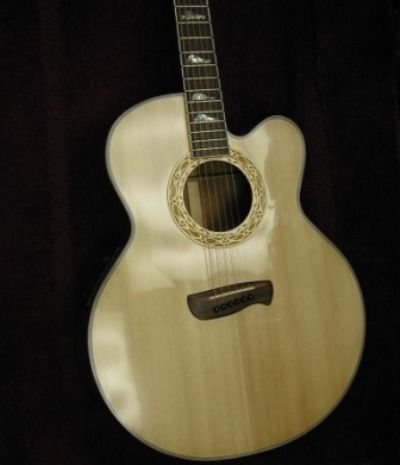

The back and sides of this Tacoma guitar are Koa - a beautiful wood to work and finish. The original finish had started to de-laminate from the wood, showing large ugly gaps between the film finish and wood.
A close-up of the Koa back. The figure is much more prominent under the french polished finish than it was under the original (thick) film finish.

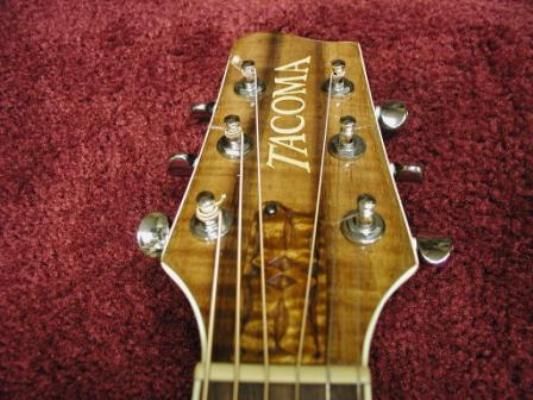

While I was at it, I decided to replace the original plastic torsion rod cover with a chip carved piece of Koa - complementing both the primary wood in the guitar and the chip carving in the rossette. Koa is a lot harder to carve than basswood, but for such a small piece, it was doable.
