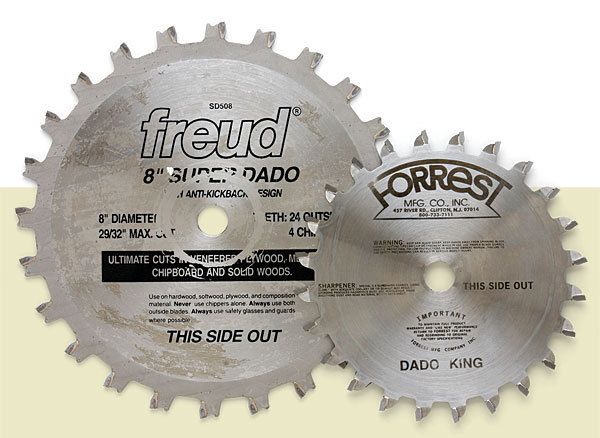

I am planning to buy a dado set. Should I get a 6-in. or an 8-in. set?
Robert Carson, Boston, MA
A:
I spoke with some of our contributing editors as well as with experts at Amana, Forrest, and Freud. Here is what I learned. First, check your saw’s owner’s manual. If it specifies a 6-in. dado set, then use that. However, if your saw can take either size dado set, but has an underpowered motor like those in smaller benchtop models, then choose a smaller dado set: It takes less power than an 8-in. set to make the same cut. On a 3-hp cabinet saw, definitely go for an 8-in. dado set. The increased cutting capacity allows you to make a wider variety of joints, like bridle joints deeper than 11/8 in. (the capacity of a 6-in. dado set), and to use a sled to guide workpieces.
Fine Woodworking Recommended Products
Ridgid Oscillating Spindle
With five spindles sized from 1/2 in. to 2 in. and a 4 X 24-in. belt, this tool sander has become a staple in many a shop Fine Woodworking visits.
• 1,650 Nails per charge using the included compact 3.0Ah Battery
• Up to 3 nails per second with no ramp-up time
• 31% lighter than the previous model
- Small-size tool for checking or setting 90 degree angles
- 4" double square, adjustable
- Working surfaces ground to a demanding +/- .00001"
- Rules are marked with 1/64", 1/32", 1/16", and 1/8" graduations
I found that 8" dado sets work well on most stationary tablesaws. I have used 8" sets on everything from a 1.75 hp contractor saw, to a 3 hp cabinet saw and it has always worked well. The large dado sets have so much mass that it acts as a flywheel. I have never noticed a tablesaw motor bog down or hesitate with an 8" dado set. I have enjoyed the increased capacity of an 8" set for deeper notching and deep tenon shoulders.
With its graceful curves, cabriole legs, and ornamental back splat, a Queen Anne side chair is a bucket list build for many woodworkers. Dan Faia had a very specific Queen…
Become an UNLIMITED member and get it all: searchable online archive of every issue, how-to videos, Complete Illustrated Guide to Woodworking digital series, print magazine, e-newsletter, and more.
Comments
I found that 8" dado sets work well on most stationary tablesaws. I have used 8" sets on everything from a 1.75 hp contractor saw, to a 3 hp cabinet saw and it has always worked well. The large dado sets have so much mass that it acts as a flywheel. I have never noticed a tablesaw motor bog down or hesitate with an 8" dado set. I have enjoyed the increased capacity of an 8" set for deeper notching and deep tenon shoulders.
