    Moxon vise

    By user-295528, member Aug 31, 2014
    Article Image

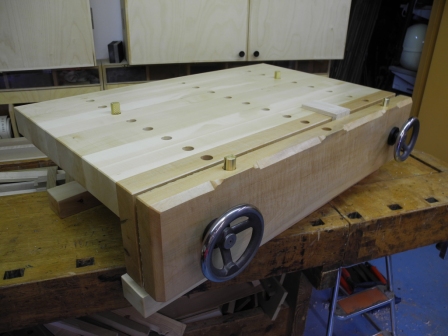

    Moxon vise with top table

    I recently completed my moxon vise. It is made of hard maple. I made a table top and drilled some 3/4″ holes where I can use Veritas bench pups to clamp stuff on top.

    I bought an acme threaded rod and milled a grove for a flat wedge in the end. I bought the hand wheels from Wiberger, a local hardware store. www.wiberger.se They had made the wedge slot in the wheel already, then I drilled an axial hole and threaded it for the lock screw.

    To get it rotating easy so that I can you give it a twist so that it rotated quite a few revolutions I made a support behind the actual acne flange nut that is screwed to the back of the front board. In the support I inserted a plastic acme nut to eliminate any drawer effect in the flange nut. The plastic guide nut I bought from Colly components.

    The maple is finished with Danish oil.

    It works quite well.

    Sign up for eletters today and get the latest techniques and how-to from Fine Woodworking, plus special offers.

    Sign Up

    Moxon vise with top table

    Moxon vise detail and lamb's tongue

    Moxon vise with dovetail in vise

    Supported acme and acme flange nut
