another dining table with self storing leaves
we’ve made quite a few tables with the pull out, self storing leaves, 6 or 8, at least. in the past, we used a complex mechanism we copied from a clients table back in 1998.
here is a video link showing the original version being opened and closed. for this new table, we took the advice of two people who had commented on my previous table post and used a simpler mechanism that we easily found described in a finewoodworking article from the 70’s by tage frid that they had mentioned. you can’t go wrong with an online membership to fine woodworking. i love the search feature … i never would have found that issue in the cardboard boxes of back issues in my attic. when i started making furniture back in the 70’s fine woodworking was my bible, home schooling lesson plan and the source of much of my ‘on the job’ training, and i saved every issue (somewhere) … after we studied Frid’s article and made a half size mockup in mdf, we determined that his mechanism was simpler to fabricate and easier to use. it works really smoothly and the clients loved it … there is a you tube video of the new mechanism here more photos and more process comments and larger photos on my dorset custom furniture blog …

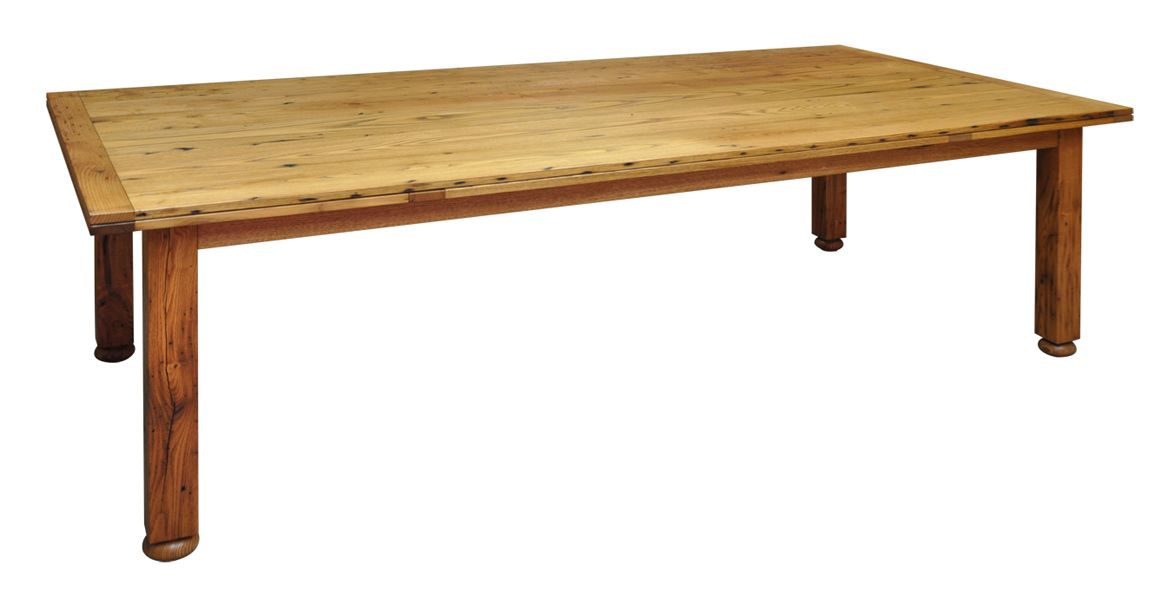

the table, 44 x 88 closed

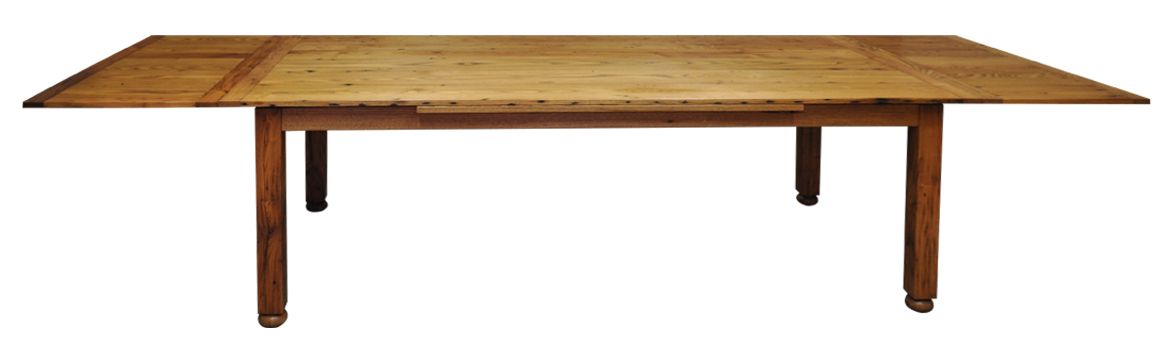

open, 44" x 132"

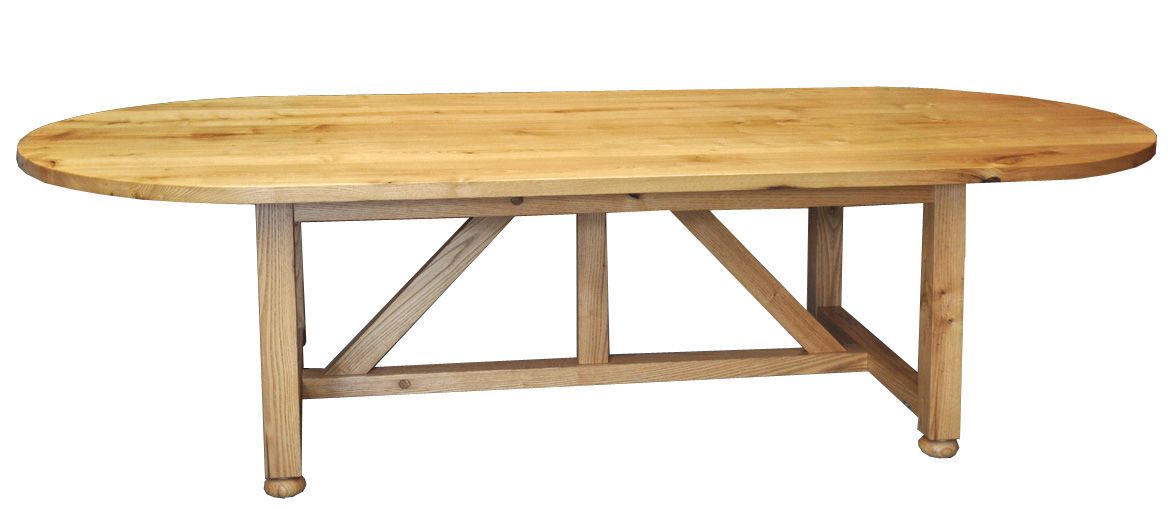

design inspiration photo. a table i made in the spring of 2011 for a client in north carolina

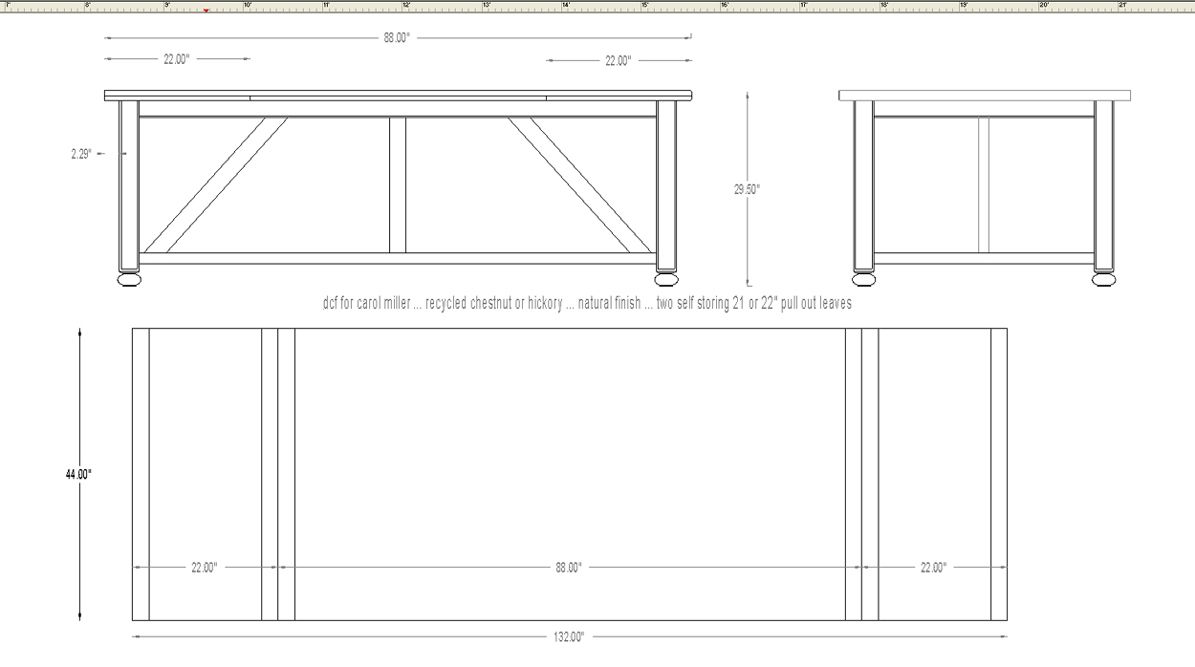

cad drawing in which i did not notice a potential problem ... fortunately, when the client decided she couldn't live with the bars across the ends of the table, we had not started the finishing process. since it was reclaimed lumber and already had some patches, we were able to remove the lower structure and patch the mortises .. presto! all fixed ...

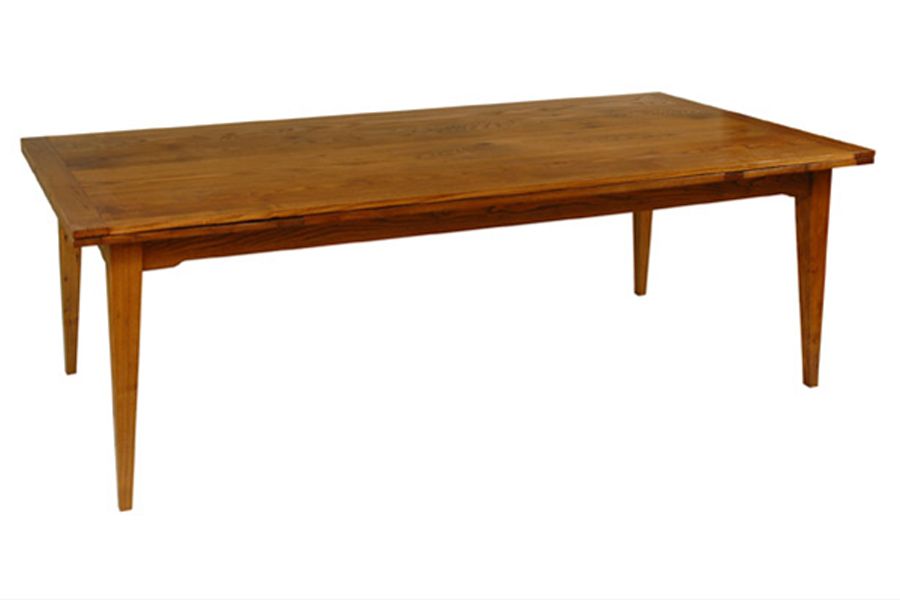

how we used to do it

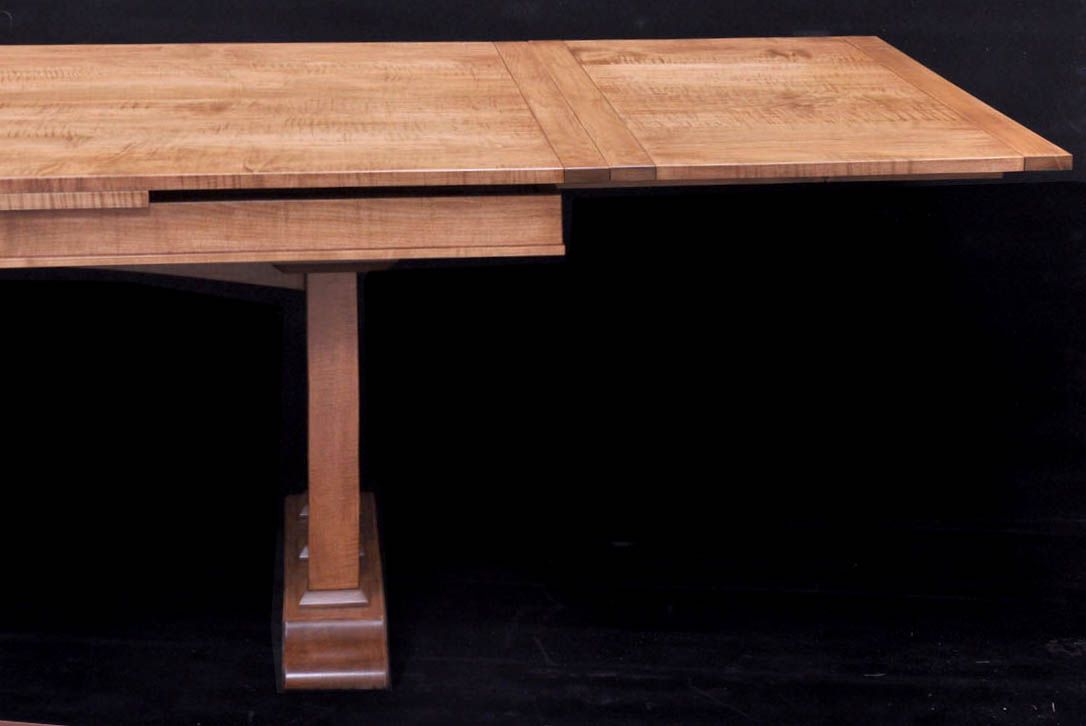

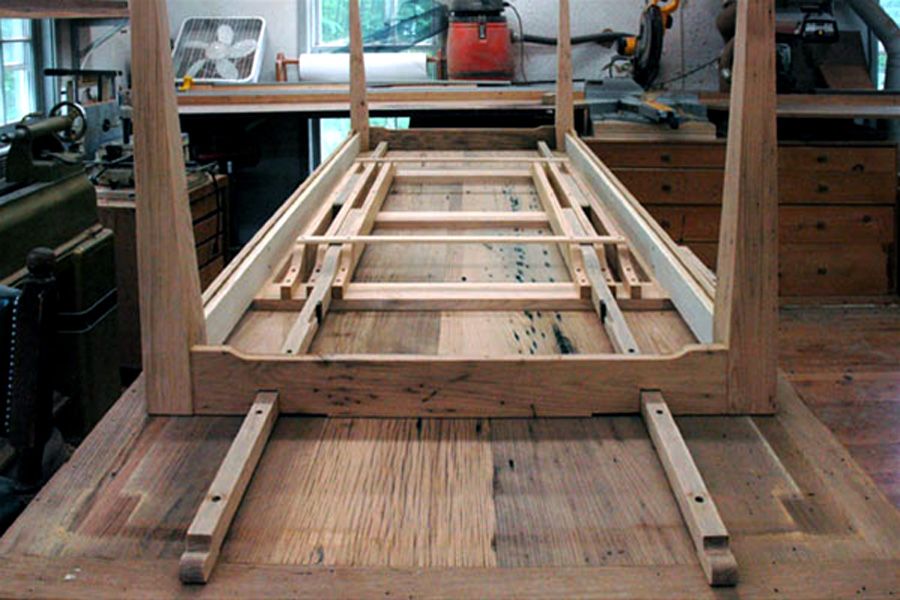

photo of the runners above is of this table

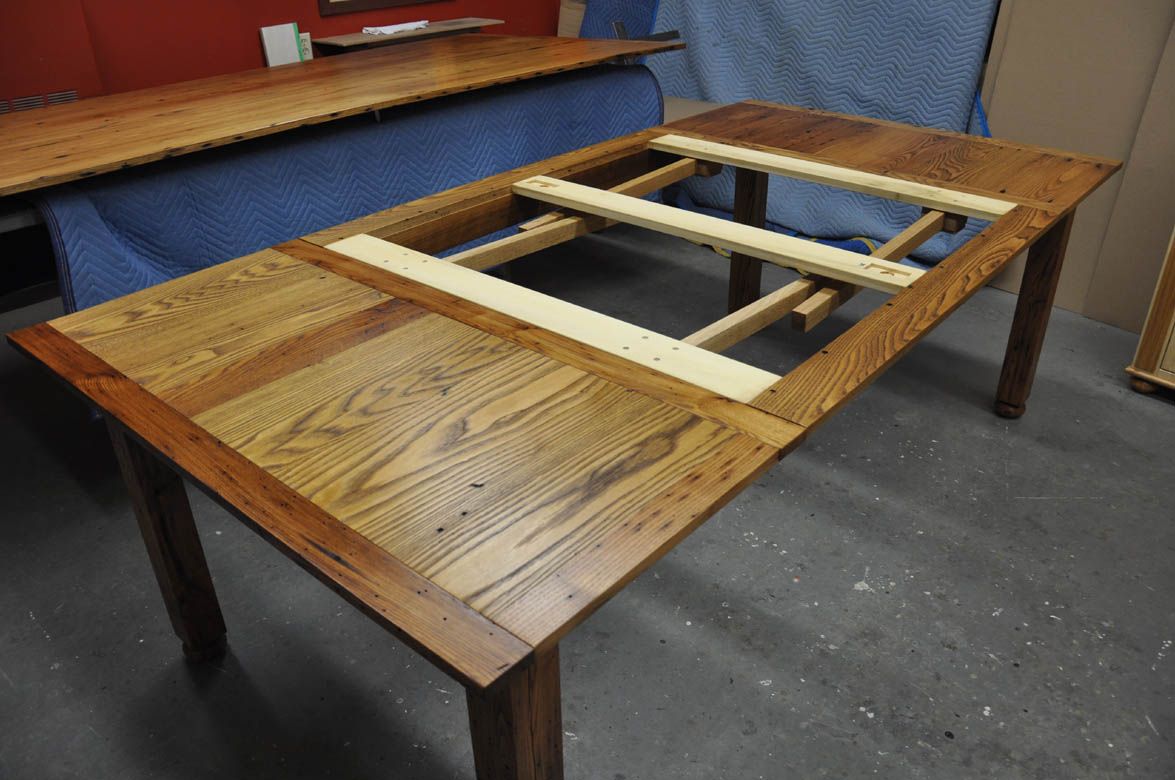

tgae frid's much simpler runner system ... does essentially the same thing

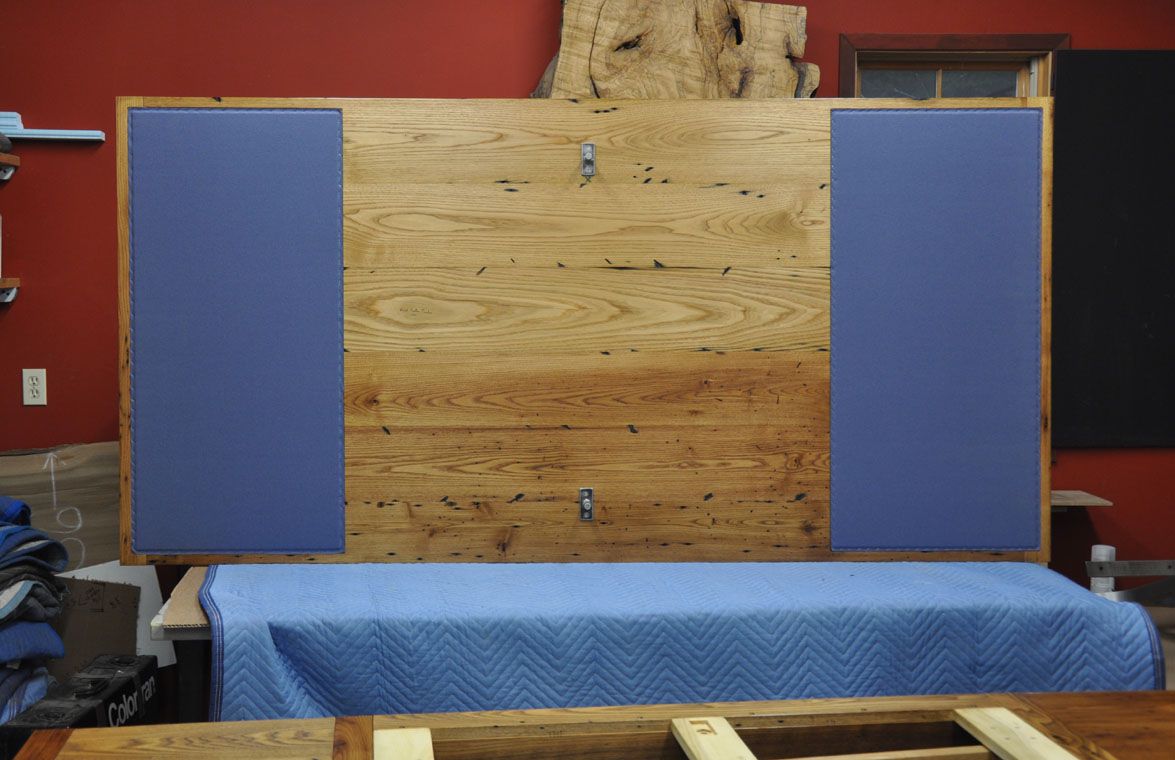

blue pool table felt on the bottom for smooth operation and to ward off scratches ...

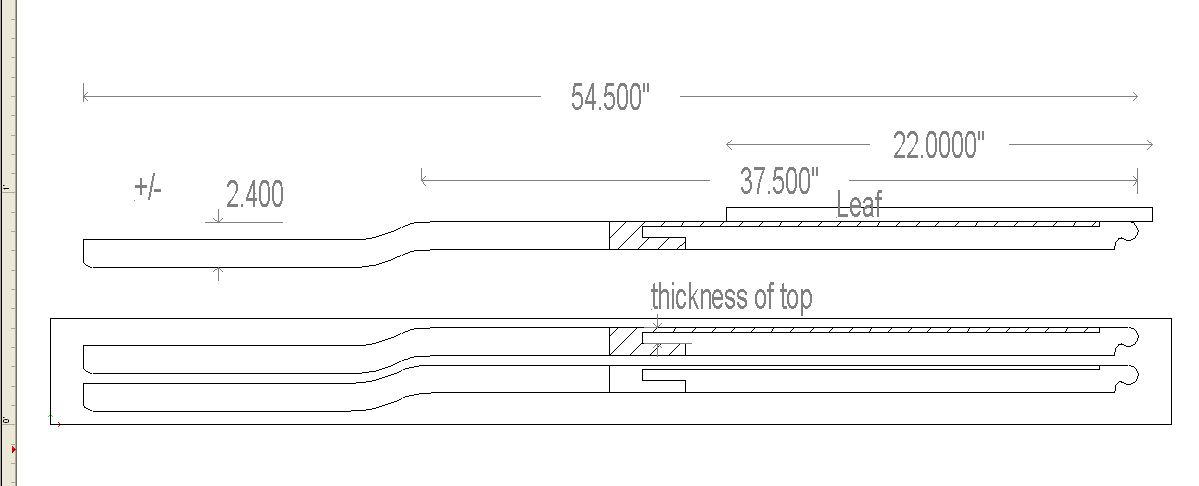

this is the cad drawing for the runner system we used to use. you can see from the drawing the complexity oif just making the runners, let alone getting the to work smoothly and consistently.
