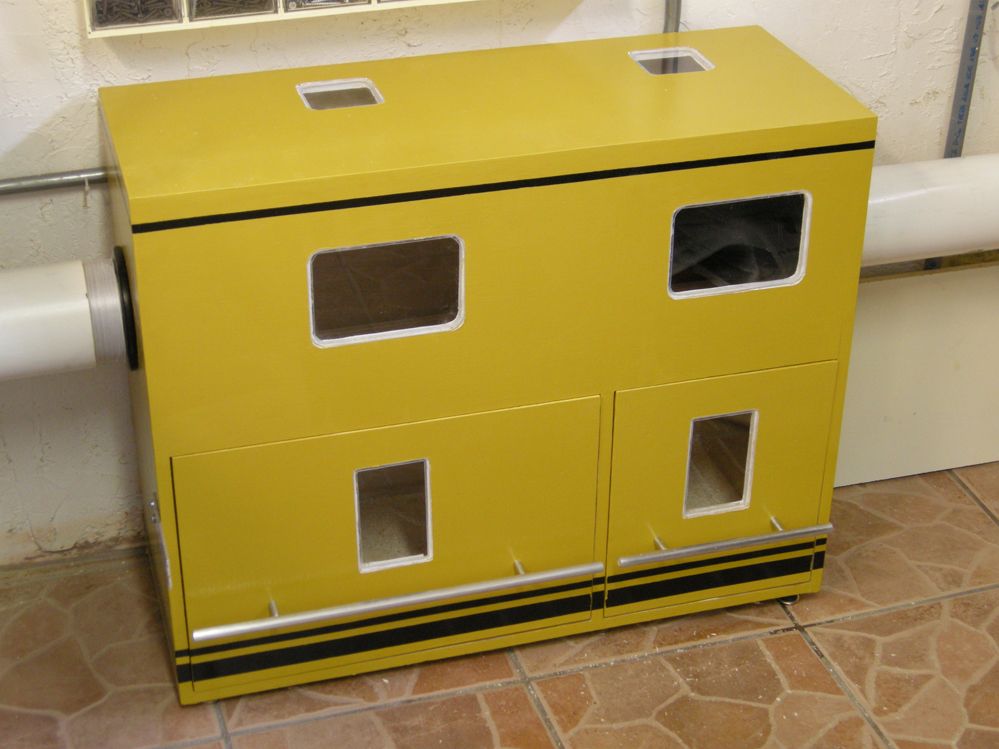

Completed Dust Separator
Dust Separator has 2 compartments with removable drawers. Rubber gaskets provide a seal for the vacuum. Measurements are: H 24″, W 30″, D 12″. Fits against wall to save space and allow easy connection to dust collection system.

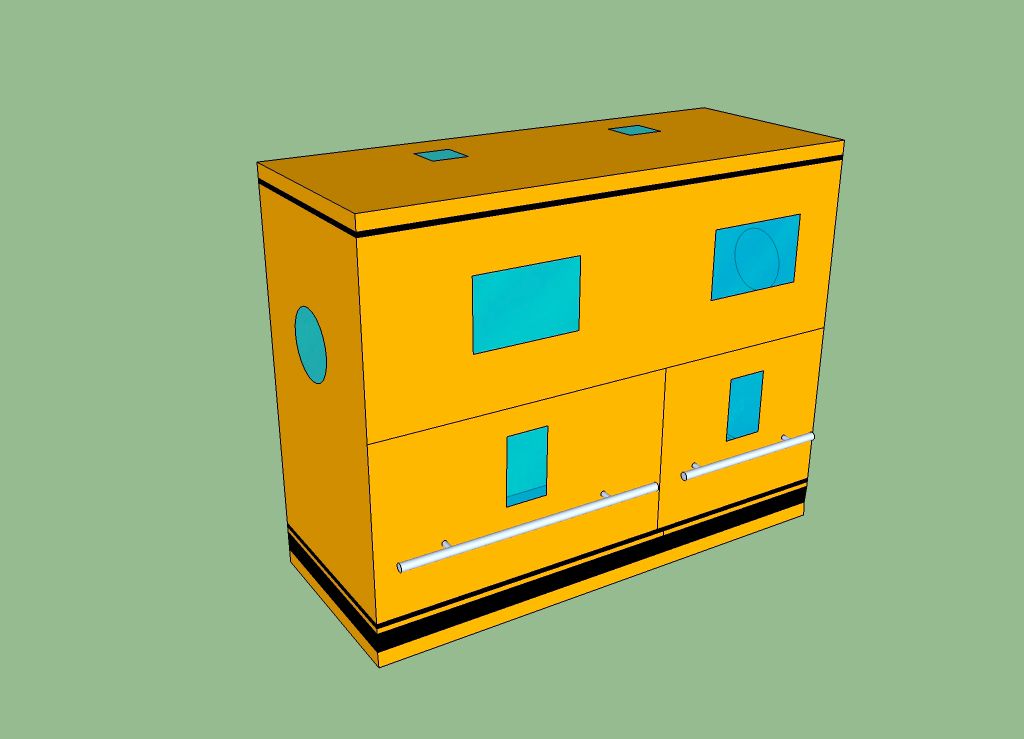

Dust Separator Design in Sketchup

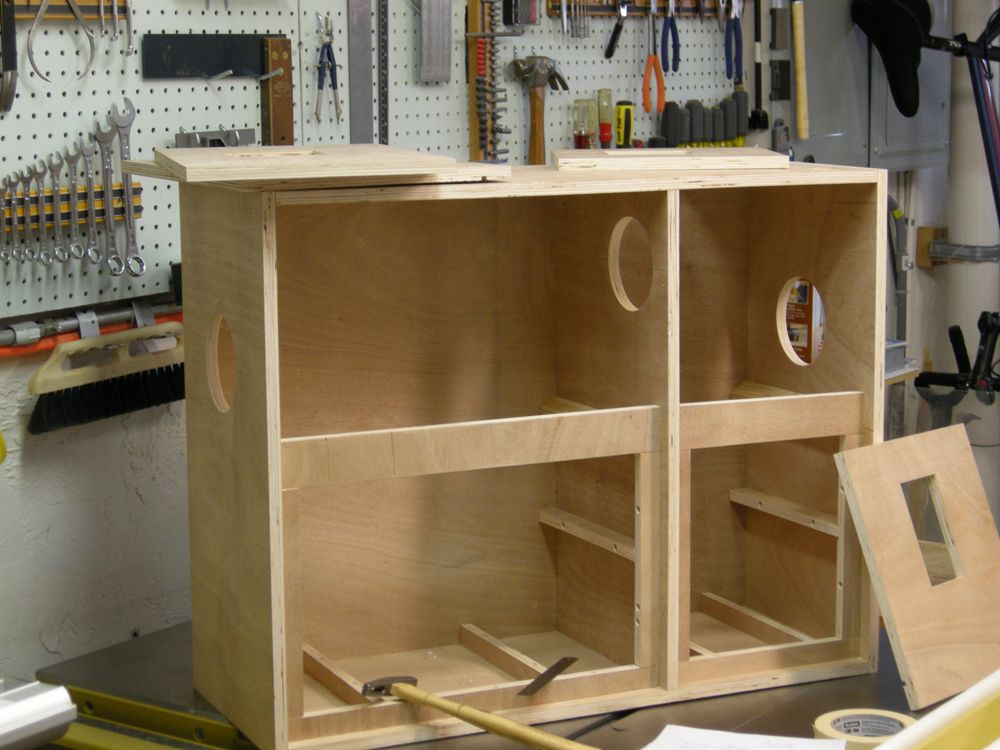

Building the Dust Separator
Get woodworking tips, expert advice and special offers in your inbox
Become a member today
Get instant access to all FineWoodworking.com content.
Subscribe to Fine Woodworking
Save up to 56%
Static pressure is the same with or without the dust separator.
Looks like it would kill your airflow. Have you measured CFM and duct airspeeds with and without?
First let me say there are no air leaks in the box because I caulked all joints from the inside. Where the duct attaches to the inflow and outflow sides there are 45˚ elbows to deflect the dust particles allowing some to settle. There are 2 compartments to separate the larger particles first and finer ones second. The dust leaving the separator is very fine therefore not endangering the impeller blade.
As a powermatic guy I think this is really cool- and if it works that's a bonus!
I would much appreciate you explaining why
A - two bins ?
B - Also why two different size bins ?
And last but not the least...how efficient is it ?
We can see the pass through hole in the divider is offset...but is it enough to “separate” dust particle ?
All in all…in my opinion, you made a VERY nice fit & finish ...separator box!!
congads !Robert ø_ø
How well does work? Say, in comparison to a home-made cyclone.
