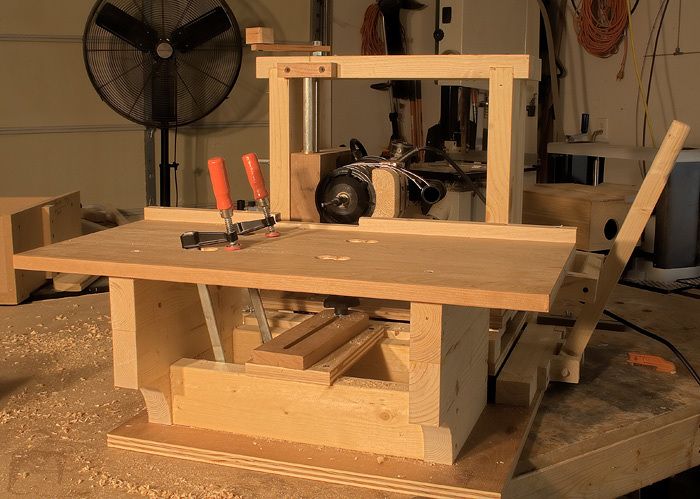

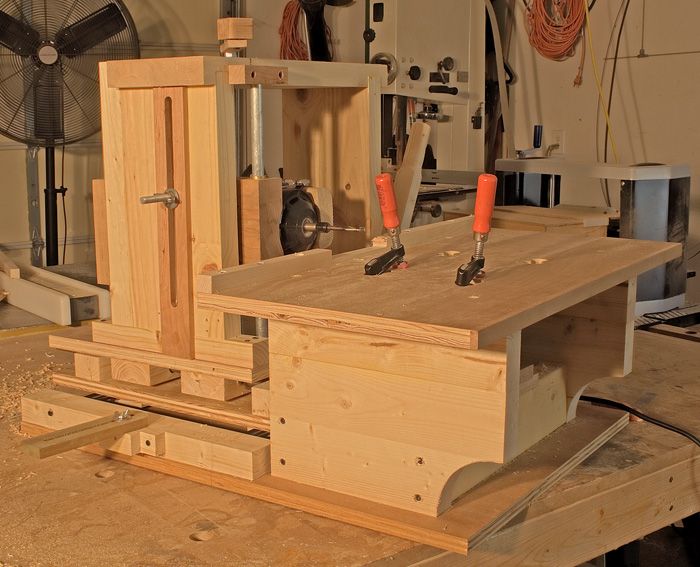

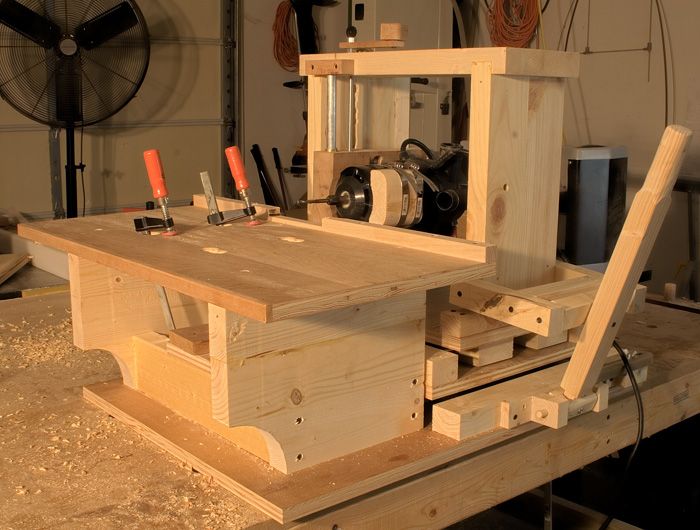

I recently finished a horizontal mortiser that I affectionately call Godzilla because of its size. It utilizes steel shafts and sintered bronze bushings for the X, Y axis tables. It also has a Z-axis vertical lift adjuster and one-handed X,Y adjustment.
See a Video of this jig in action.
See the process and more pictures here.

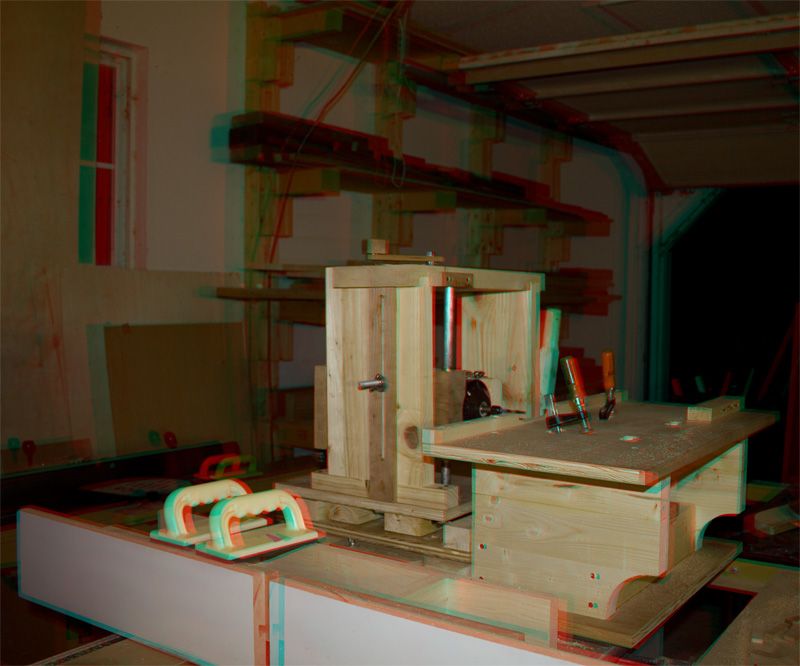

This photo is in 3D. You will need blue-red 3D glasses to view it.
See a larger version here.
Get woodworking tips, expert advice and special offers in your inbox
Become a member today
Get instant access to all FineWoodworking.com content.
Subscribe to Fine Woodworking
Save up to 56%
Jon - Good question. First, I thought it would be easier to insert clamps into a table that didn't have shafts below it. Second, I don't have to worry about the position of the lever ever interfering with clamped down work. Third, I can do really long bed rails if I wanted to (opposite end on a stand) and not have to worry about moving it around on two axes. (This would be challenging even with a Multi-Router).
It is a breeze to move the lever. You can move it with only two fingers with no problem; I've tried this :^)
Nice jig! Just out of curiosity, why did you chose to have the router move instead of the bed that holds the workpiece? Seems like there would be less stress on the bearings and the arms of the user if the lighter workpiece was the movable part instead of the heavy router part.
Thanks for posting, I'm feeling inspired!
See a video of this jig in action here:
