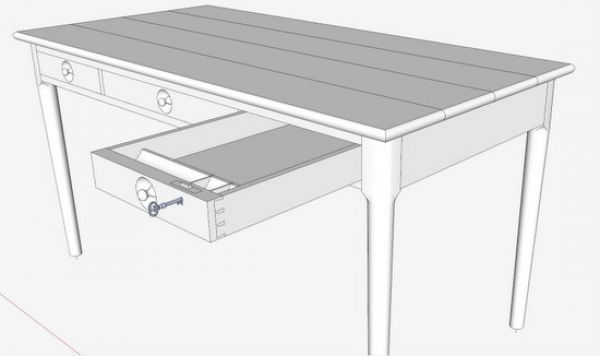

The following video shows how I outfitted a desk drawer. It includes placing the mortise lock and creating a pencil/pen trough. The placement of the lock is facilitated by prior modeling of the actual hardware. Early In a furniture project, I typically order my hardware. This gives me the opportunity of modeling it and including in the SketchUp file. In this way mortises and recesses are accurate in the model before I go to the shop.
In this particular desk, the drawer front is extra thick to account for the deep recess for the embedded handle pull. This thickness allows a mortise lock. Normally my drawer locks are not fully mortised rather recessed into the back face of the drawer front.

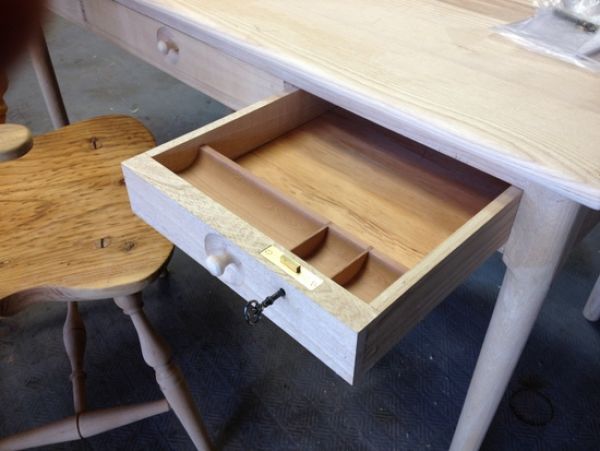

Here is a picture of the desk with the end drawer partially withdrawn. Note the drawer lock and the pen/pencil trough.

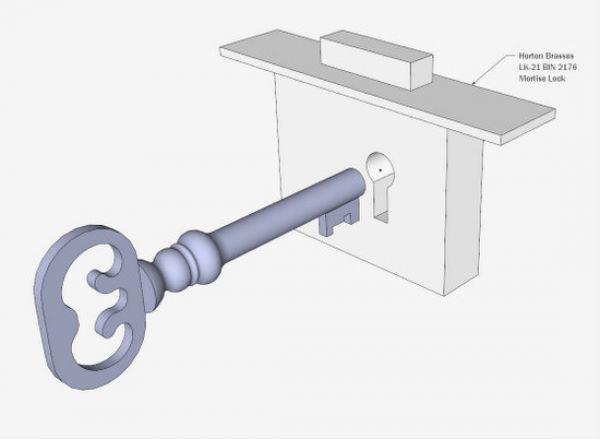

Here is the model of the mortise lock.

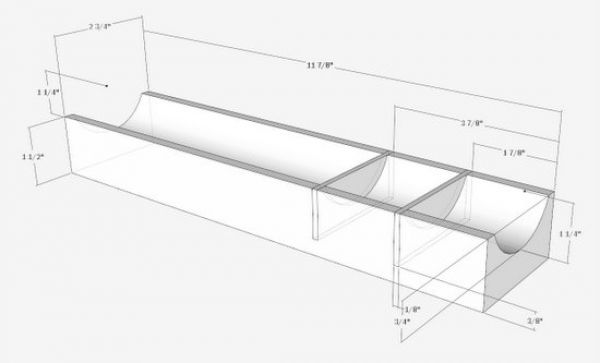

And here is the model of the trough.
In the video, I incorrectly drew the trough at full depth of the drawer. Nevertheless, the procedure is and steps for SketchUp are correct.
Here is the shop construction……
Get woodworking tips, expert advice and special offers in your inbox
Become a member today
Get instant access to all FineWoodworking.com content.
Subscribe to Fine Woodworking
Save up to 56%
RalphBarker: thanks, I tried hard to replicate Modesto Ash. The trough is old growth redwood, and the drawer bottom is sugar pine.
The surface texture in the last drawing is very realistic, Tim. ;-)
