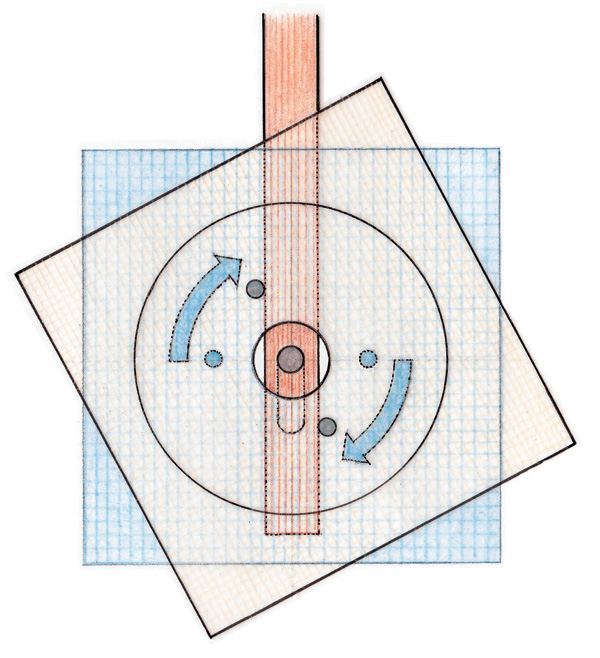

This simple base, used with a plunge router, makes it easy to center a mortise on a leg or post. The base has two downward projecting pins at equal distances from the bit on opposite sides. The concept is elegantly simple: When you rotate the router so that the pins are touching the sides of the workpiece, the router bit is centered.

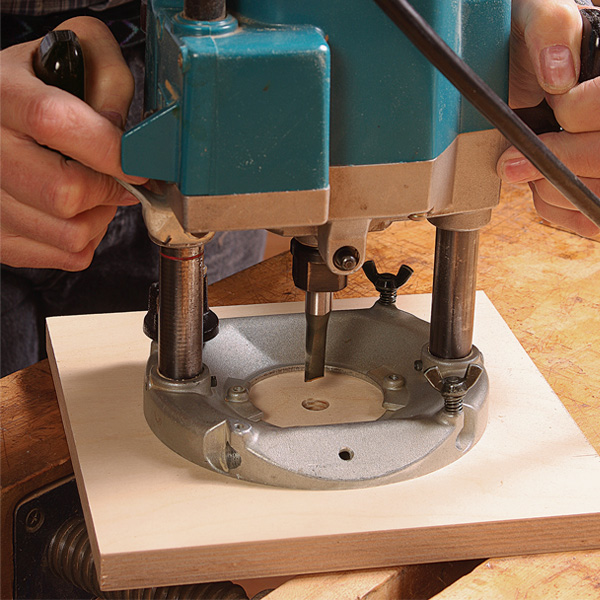

When building the base, it’s crucial to locate the pins accurately. Do this after the base is attached to ther outer and a hole for the router bit has been plunged through. The distance between the pins should exceed the widest part your likely to use it for. With the locations marked, remove the base and drill the holes on a drill press. Finally, insert smooth dowels-not the kind with ridges-or metal pins into the holes.

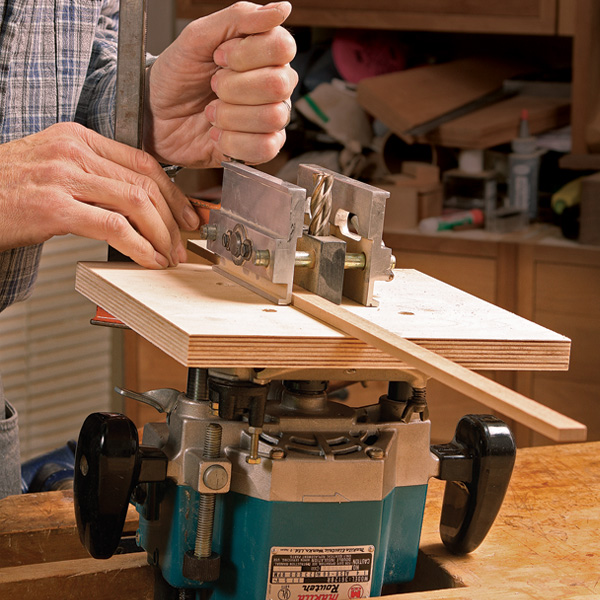

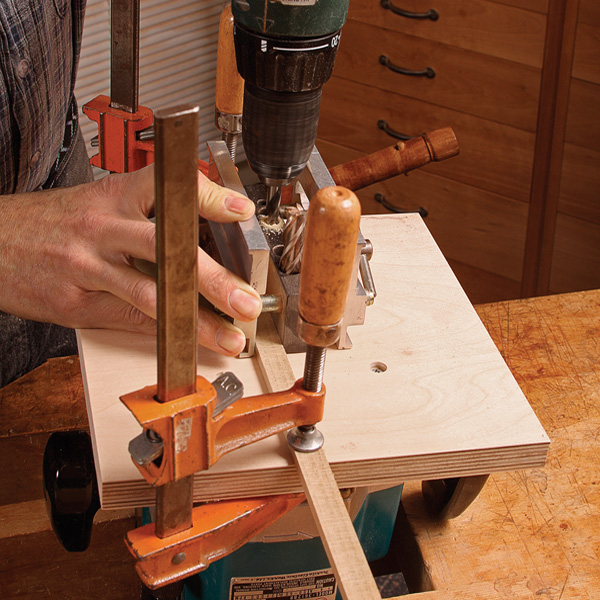

A better way to locate the holes is with a self-centering dowel jig, used in an unconventional way. With the base attached and the center hole plunged, chuck a 1/2-in. drill bit in your router (you won’t be running the router with this, it’s just a reference), then place the 1/2-in. bushing of the doweling jig over the bit. Align the 3/8-in. bushing hole so that it is either across or in line with the axis of the router handles, then position a straightedge against the jig and clamp the straightedge to the base. Drill throug the 3/8-in. bushing into the base. Then swing the dowel jig around to the opposite side, use the straightedge to align it, and drill the other hole. You can then enlarge the hole for the router bit to whatever you need.

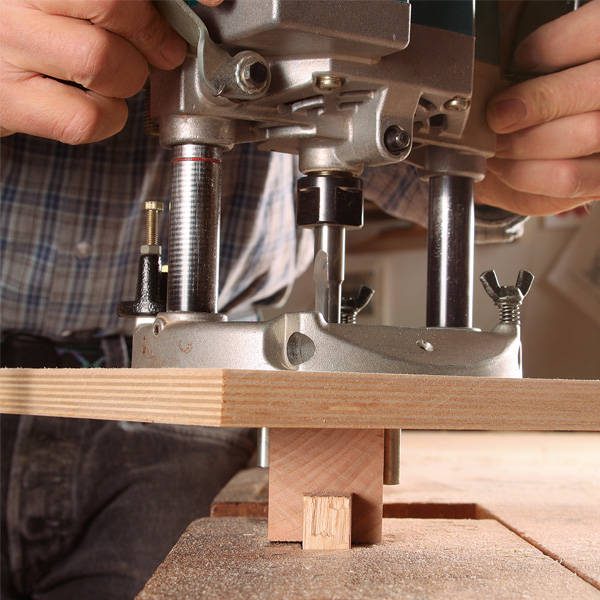

In use, you may need to leave your workpieces a bit long in order to support the pins on when cutting mortises near the en of a leg or post.
Get woodworking tips, expert advice and special offers in your inbox
Become a member today
Get instant access to all FineWoodworking.com content.
Subscribe to Fine Woodworking
Save up to 56%
Download over 16,000 WOODWORKING PLANS at here woodworkingplanspro.weebly.com Woodworking guide offers anyone of any skill level the ability to build amazing projects. The guide is extra helpful because it offers more detailed explanations, videos and blueprints then your typical woodworker magazine .
Hope it will help you next time !
My Bosch router is exactly 3" from center of bit to edge of base plate. What about making this template round where the diameter is the same size as the existing base and then attach. Then you can setup and clamp a couple of "U -shaped" stop blocks for the base to hit and get the perfect mortise cut.
How can you see where to start and stop the mortise?
Like others have said- looks wobbly to me... If this is a jig that will get used once or twice a year and then gather dust it would be fine. If you can remember how to use it (the fault with some of my jigs that only get used once or twice). If you are going to be doing production
work, then consider Woodhaven's horizontal router table. My homemade one is over 40 years old and has been adapted to newer routers as the others died. If you are to use other thicknesses, you would have to have more jigs. I like jigs- I have some that are over 50 years old- so old that I have to go back and find my contributions to woodworking magazines so I know how to use them. I find that it is better to move the work than the tool.....
I agree with a clear material for the base however .....
I think if you made the centre hole larger you would be able to see your layout lines, then plunge down to full depth at each end of your mortise before routing out the full length of your mortise.
You would have to be careful the router doesn’t tip – possibly a board on each side would add needed support. Just keep that in mind and allow extra spacing when positioning your centering pins.
To Ikesson if the stock is properly clamped the jig is very stable, btw this is an old school jig and yes the clear lexan is spot on as another reader posted but make sure it is at least .5 in. as the lexan can flex.
This is basically the same as a measuring ceter finder just scaled up for the router
"Looks wobbly to me, especially on thin stock.. I'll keep using my router table, thank you."
I'm not sure how you're using a plunge router on a router table...
Looks wobbly to me, especially on thin stock.. I'll keep using my router table, thank you.
LOL I guess I should have read ahead. Seems that was already mentioned :)
I really like the simplicity of this method. I don't know if it was already mentioned above, but what would make this an even better design would be to use a clear Lexan base for it's strength, gliding properties and to provide visibility of the cut. Otherwise very nice idea.
Half-inch clear Lexan would be a good alternate material for a base like this. It's very machinable and durable.
The idea is good. The suggestions for a clear base are spot on.
Seems it would be troublesome to keep pressure on the pins as you plunge the router deeper and deeper. Also looks like the plywood base blocks your view of the workpiece. How do you know where to stop the cut on the top and bottom of the mortise?
I like the idea, too, and have used other variations. I have run into one problem, though.
If you let the router body rotate even just a little while making the cut the bit will follow. It is pretty easy to mess up a piece that way.
Assuming you have a router with the european style mounting for guidebushes (such as the DW621) you can also do this with two small bearings, two spacers and two countersink head screws (with the same thread as the guide bush mounting screws). The screw head outer diameter should be larger than the bearing inner diameter.
I have used this for stopped dovetail grooves. I put two workpieces on the bench with a gap between their ends greater than the maximum diameter of the dovetail cutter, sandwhich them with two pieces of ply. Register everything on the bench, then pick the whole lot up, turn it over and clamp in your vice with some showing out the top. The bearings run against the ply. You can then move the cutter in to contact with one of the workpieces, make a mark, do the same for the other side. Take the router out, measure the depth you wish to rout, make an end mark. Then, put the router back in the jig, put the bearings in contact with the ply, start the router and make your cuts.
Really love this idea! I also like the post of epirnik (see above) about offsetting. This makes me wonder if you could put various thickness "sleeves" over one post to offset. Dang! Looks like I've got MORE experimenting to do.....
Muy ingenioso y facil de implementar. Gracias por el aporte.
Just need to remember to keep the pins up tight against the workpiece, otherwise, your mortise will not be true.
Just need to remember to keep the pins up tight against the work piece to keep it centered. Otherwise, your mortise will not stay true.
Hi. I did a bridal joint at the top of a rear chair leg with this method. Do use a clear material for he base and do leave the stock about three inches longer than needed to accommodate the distance between the pins and the bit. I just did a standard thru mortice then cut the top off to create the open joint.
I just purchased a similar base from Rockler(on sale for 10 bucks!. I used a shim on one side of the routed piece to offset the bit. It worked great!
LOVE this idea! Thanks TimR!!
I've also wanted to experiment with doing offset mortises by placing one of the pins closer to the bit. In theory, I think it should work - haven't tried it yet, though.
Thanks for the great idea.
I would suggest splurging a little and buying a clear material rather than plywood. That way you would have better visibility and could see where to start and stop the mortise. If you wanted to still use plywood I would open up the hole in the center where the bit passes through.
