Store your tools with an ingenious space-saving tool rack that operates much like a book. It's this month's free project plan.
When wall space is at a premium, tool storage can become a real hassle. Anyone with a small garage or basement shop has probably been confronted with this problem at some point. Virgene K. Adams, of Frisco, Texas, solved it with a simple set of swinging pegboard panels.

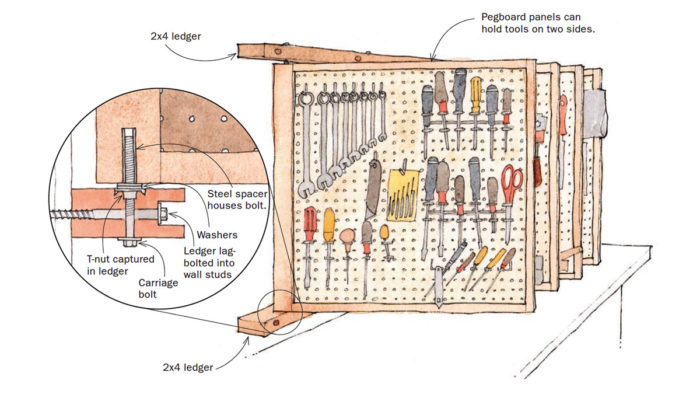

The secret is in the simple pin that allows the rack’s various faces to swing left/right for access to either side.
See how he did it with this month’s free project plan.
