I believe it is a record for me – that is, the number of templates used in one piece of furniture. Without them I would be lost. There are no square angles on a Maloof design – this one, an “occasional chair”. Although it takes some time to model-up the chair, SketchUp delivers the products that enable my building of such a complex piece. I am sharing this design with my students who are also in the process of replicating the chair.

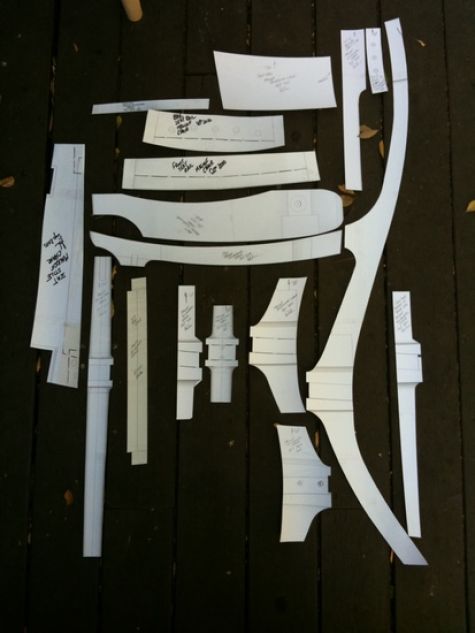

Here is a picture of the templates……
We’ve covered the process for producing full-size templates in several previous blog entries. There are only a few things to remember:
1. You need to using a standard camera view such as Front, Right Side, Left Side, or Top View2. Your Camera needs to be set for Parallel Projection (not the normal Perspective)3. And in the Print Dialog Box, make sure you uncheck Fit to Page, and set scale to 1:1
When I’m working in the shop, I print these full-size pages on my standard 8 1/2 x 11 printer straight from SketchUp. You can do this in your free version. I patch the pages together and stick to poster board.

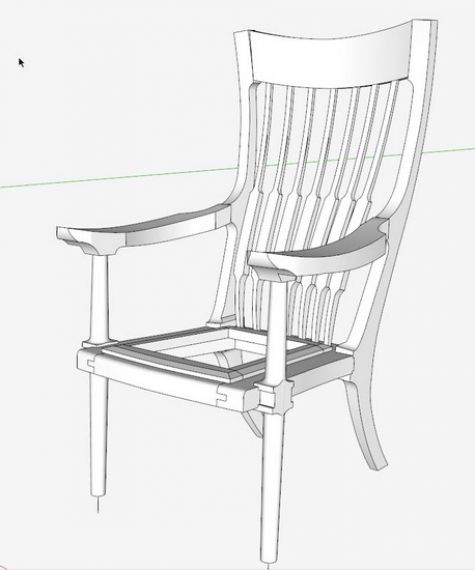

Here is the SketchUp model……

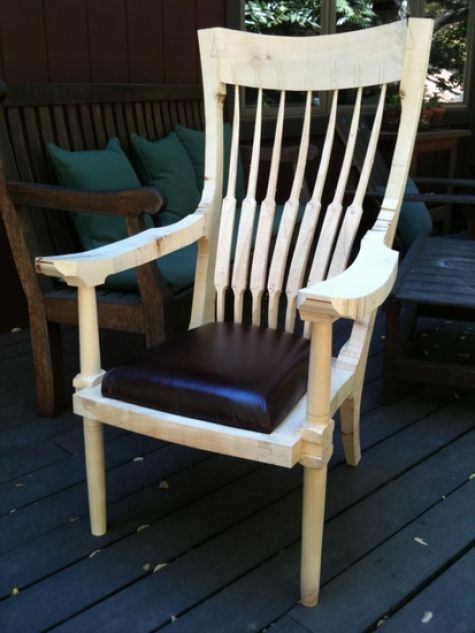

And here is the roughed-out band-sawed assembly in silver maple (spindles in ash)……
Of course, there is plenty of work to go – all the sculpturing and shaping that is the essence of a Maloof. I suppose you could also sculpture and shape in SketchUp, but I find this too difficult and really unnecessary. I’m happy to have the rough band-sawed version in SketchUp. I don’t need SketchUp for the artistic expression with hand tools.
Get woodworking tips, expert advice and special offers in your inbox
Become a member today
Get instant access to all FineWoodworking.com content.
Subscribe to Fine Woodworking
Save up to 56%
Oops! My email is firstname.lastname@example.org for any direct reply to my prior posting.
I, also, would like to receive email from you about the answer to the above question. Is the *.skp file for the Maloof chair available from you or through FWW? I have made chairs and have used SketchUp extensively for my woodworking for a number of years - started with v5_Free and currently use v8_Pro. I have learned a lot though from your postings and from your SketchUp downloadable PDF file sold by FWW.
To hbowern: We can discuss on email - email@example.com
Are you putting the model up on Fine Woodworking store?
