Made from two simple beams and two sawhorses, Josh's Finn's simple, storable workbench is remarkably versatile. Here he's got the beams set up side by side with a stop screwed on for handplaning. Download the free plan to make the sawhorses.
Fine Woodworking is no slave to tradition, and we’ll take great ideas wherever we can get them. You should too.

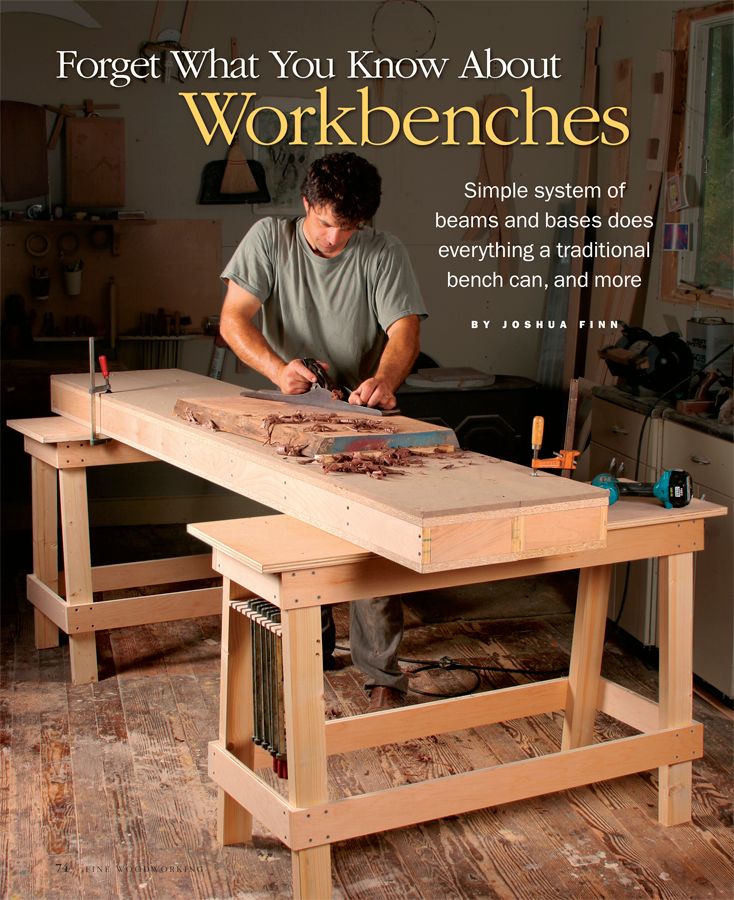

In her travels in upstate New York, FWW editor Anissa Kapsales ran across a pro woodworker with a workbench unlike anything we’ve seen. Josh Finn’s innovative bench, featured in 2008’s Tools & Shops issue (FWW #202), is nothing more than two long boxes and two sawhorses, but it can do everything the fanciest Scandinavian bench can do, and more. It can be configured in a variety of ways for all sorts of power and hand work, plus gluing and clamping. Try that with your dad’s workbench.
One side of the long beams is melamine, which resists glue, and the other is Homasote, a soft fiberboard that grips workpieces, won’t mar them, and is easy to replace when it becomes riddled with holes, gauges, and sawkerfs. And the whole thing can be broken down easily and stored. Also, if you remove the long beams, the two broad-topped horses come in handy as a low assembly table and more.
I’d say this bench is is more suited to power-tool lovers than the hand-tools-only crowd, but if you need a versatile workbench and have at least rudimentary skills and tools, you should give this innovative workstation serious thought.

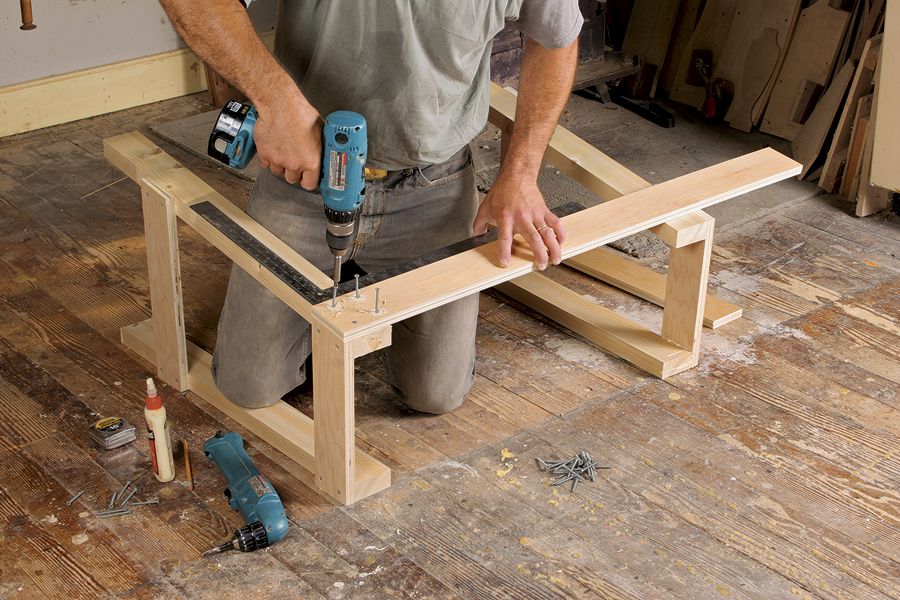

Anyone with a circular saw and power drill can build these versatile sawhorses. Download the free plan to make these sawhorses.
The same goes for the two beams, which are just long boxes with crosspieces inside for strength.
One side of the beams is Homasote, a soft, non-marring fiberboard that grips workpieces.

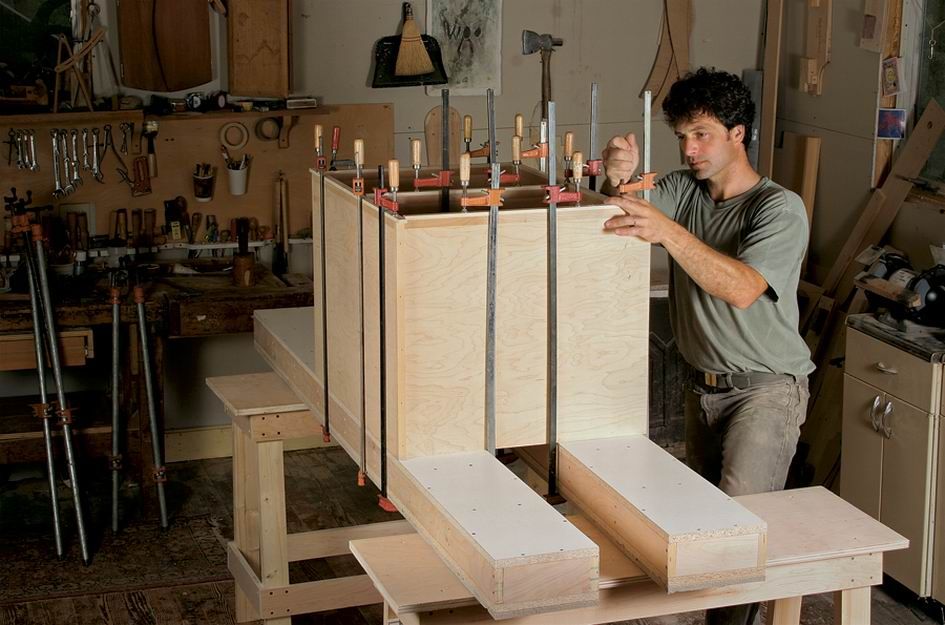

The other side is melamine, which resists glue, and the beams can be configured in a variety of ways to aid clamping.
Get woodworking tips, expert advice and special offers in your inbox
Become a member today
Get instant access to all FineWoodworking.com content.
Subscribe to Fine Woodworking
Save up to 56%
I have the hard copy of this issue and really like the modularity for a small shop. But I got to thinking the Double I Beam style would be just as strong and give you a decent mounting clamping lip and have the upper surface clear. Insert the end blocks a good distance and make a pin nailed together hollow MDF slip tendon to join the I beams end to end. Same amount of material.
Problem : my shop's floor isn't flat
After a test with a beam (built for a canoe), i am interested and convinced by the finn's bench but the flatness is necessary for a good use no ? an idea ?
I have always wanted to build one of the fancy sturdy work benches we see in all the publications. When I saw this simple one with obvious advantages, I build it right away. With the use of clamps and templates it has performed beyond my expectations. It is extremely versatile and has suited all my projects. I spend the bulk of my shop time at the bench. A eight inch bench vice was easily installed at the end of one of the boxes. Using pipe clamps and drilling holes through the side of one of the boxes a two ft long bench vice was fabricated. If the surface gets messed up, just change it. It also works great as an out feed table, and clamp holder. Now I have no desire to waste my shop time building that fancy bench. Once again the simplest solution is the best, but it takes a clever mind to see the simplicity. Thank you Mr. Finn.
I have a suggestion for the sawhorses. The long stringers (the ones about 8" above the floor) are positioned to bang up my ankles, and keep you from getting as close as possible to the work surface. My suggestion is to move those stretchers to the inside of the legs. This gives a couple of inches more clearance for your ankles, is almost as easy to build, and shouldn't sacrifice any strength.
I built this bench when it first showed up in Fine Woodworking.
There are many positives to it, but one big negative for me.
I'm 74 and find that the two boxes are extremely heavy to the point that I just don't move it or change its configuration.
If the article mentioned that, I might just have built it with shorter boxes to make it more manageable.
In addition, my shop has seven foot ceilings so that with eight foot boxes, I can't stand them up for storage.
Having worked with Homasote I think a good substitute would be suspended ceiling panels.
Because of an untimely move, my "stationary" workbench is in storage. I needed to do some renovation work at my new locale and traditional saw horses just wouldn't have been sufficient. I built the two benches from Joshua's article while working on my driveway (in 20 degree weather), carried them inside (light and easy to navigate up a narrow stairway), and was able to do everything I had to do (with the addition of a couple of clamps.) The use of "cull" lumber from my local big box store kept the total cost under $25.
There are so many options for workbench tops and Homasote is only one of them. I would recommend to anyone considering this bench setup NOT to feel that without Homasote this won't work. Use your imagination! Hardboard, cork, a yoga mat, vinyl, laminate, carpet padding, carpet--whatever suits your need. Hard, soft, resilient, nonstick, nonscratch, waterproof, etc. Homasote is nice because is fulfills many of these needs, but it's not the only answer. I stuck with plywood and used a moving blanket when I needed to protect a finish.
Once my tablesaw comes out of storage I'll consider building the beams. I could've had the lumber yard rip a plywood or melamine sheet for me, but I didn't want to spend the money since I already had material (also in storage).
Great project with a million uses. Thanks!
Holden, you might try Menards for homosote, but I don't know the particular number for it.
Holden, you can go to the website below, and plug in your zip code to see where the suppliers of Homasote are in your area.
The FW article specifies Homasote 440. I noticed a couple of places in my area that sell the 440 per the search. Two others said they would special order. Since Homasote is typically for commercial use some of the sellers may not sell single sheets.
I also made this bench and love it for its versatility. There are issues that come up from time to time but they are usually handled after rethinking the problem. I did drill holes through the beam's sides so that I could install pipe clamps to create a side vise of varying lengths (stole the idea from John White's newfangled bench) and this works well for speed when sawing dovetails and other such joints. For the cost conscious it is a very good and stable bench. My only issue is that I have not been able to find anyone who carries homesote. This has been very frustrating so it is just plywood on the one surface and melamine on the other of the beams.
Jeff... you should post pix of your "bench" here: http://www.finewoodworking.com/gallery
What design are you considering for your next bench? It's never too early to start planning for an upgrade. :)
Motivated by the article in Tools and Shops, I made this workbench after contemplating several different styles and designs. It was easy to build, economical (a plus in this recession) and it has been very flexible.
I still wish I had one of those traditional benches though.
