I was thumbing through (figuratively, of course) the most recent DVD archive of Fine Woodworking, which includes just about every article and advertisement hofrom issues #1 – #208. I came across an article William Corneil that I’d seen before but never read: “Shopmade Bandsaw,” FWW #65, pp. 60-63. (I was looking for an article on the Roubo bench that was published in the same issue, on p. 66.) The saw has 20 in. wheels, is made of plywood and solid lumber, sports a 1/2-HP motor, and has around 12 in. of resaw capacity. Best of all, it cost Mr. Corneil all of $72 to make it.
Of course, that was back in 1987. Reading that article got me to thinking. I knew that there were similar articles published during the years (a shopmade tablesaw immediately came to mind), so I decided to track them down. If nothing else, I thought, I could write an interesting blog post about all the woodworking machines we’ve shown you how to make. And there are quite a few!
UPDATE – April 28: For a concise listing of six of our most popular vintage articles covering the construction of homegrown tools, visit Matt’s latest blog post.
The shopmade shop
In fact, you could equip a shop with all the machines you need based on these articles. I’ve listed them below, with a few words describing every one. Unfortunately, none of them are available on our website. I’ll post a PDF of Mr. Corneil’s bandsaw article soon. And where possible, I’ve posted a photo or drawing of the machine. For the rest, you’ll have to get your hands on the archive DVD (plug, plug, plug).
Tablesaw and jointer
Galen Winchip figured out how to make two of the shop workhorses, the tablesaw and jointer. The tablesaw, which appears in FWW #41, has a sliding table. The arbor doesn’t tilt, but the saw is made for crosscuts, so it’s not that big of a deal. If Mr. Winchip did need to make a cut with the blade tilted, he could just use one of the two tilt-arbor tablesaws that he made. The saw cost about $300 to make in 1983.
His 6 in. jointer (FWW # 28) is just as impressive. Before I opened this article, I was expecting to see a handplane. I was mistaken. This is an industrial jointer, made from plywood and beech, powered by a 1 1/2-HP motor. It cost Mr. Winchip $350 to make, which, at the time, was about $1000 less than a 6 in. jointer made by a tool company. Now-a-days you can get a very good 6 in. jointer from a number of tool companies for about that price. And I got a great old Delta 6 in. jointer for much less. Nonetheless, you have to admire the audacity and skill needed to make it. (Unfortunately we don’t have the correct rights to the photos, so I can’t post them here.)

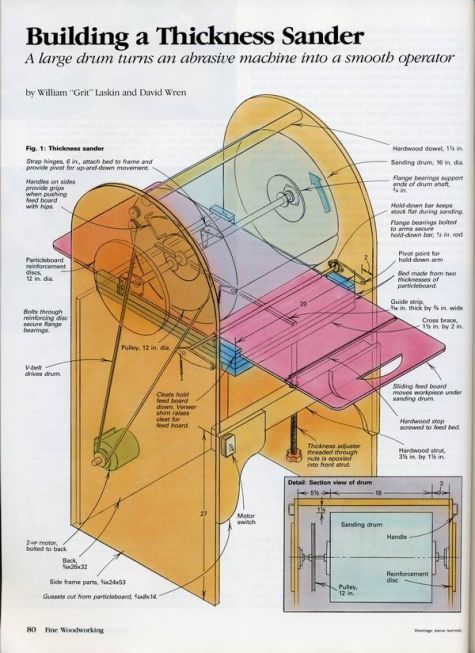

Next up, you would need some way to thickness boards. William “Grit” Laskin & David Wren showed how to make a thickness drum sander in FWW #85. No, it’s not a planer, but it would get the job done. The drum has a 16 in. diameter and is made from a bunch of particle board discs.
A sliding table saw just for crosscuts

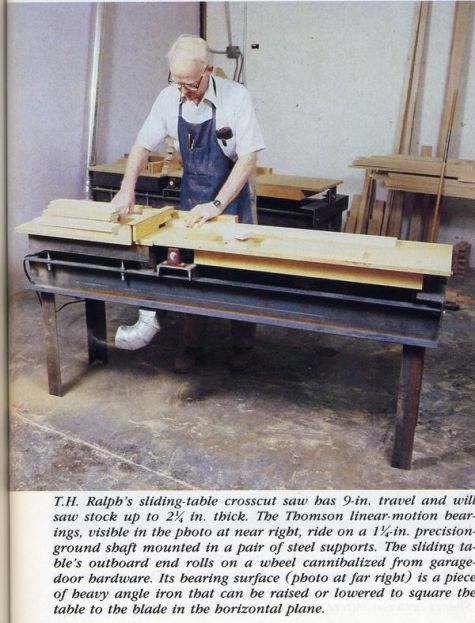

If you didn’t want to build the sliding tablesaw by Mr. Winchip, you could always opt for the crosscut saw with sliding table by T. H. Ralph in FWW #59. Honestly, I’m tempted to make this one. Basically, it is a tablesaw that does nothing but crosscut. Front to back, the table is quite shallow, but it is very wide. The sliding table has 9 in. of travel. I think I’d like about 12 in. – 18 in. of travel. Nothing does crosscuts better than a true sliding tablesaw, and this is one. But, I know I’ll never make this one. I’m saving up for a something like a Felder. And if I win the lottery, I’ll get a Martin.

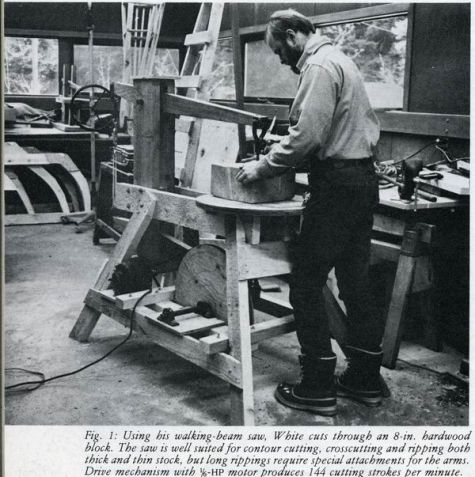

Make your own bandsawI use a bandsaw on just about every piece I make. I’m addicted to bookmatched boards and curves. FWW has shown readers how to make more than one bandsaw through the years. Before Mr. Corneil’s impressive 20 in. bandsaw, there was the walking beam saw by Mark White in FWW #24. It’s is closer to being a oversize (humongous, to be exact) scroll saw than a bandsaw.
Three ways to make a latheWe’ve done at least three lathes through the years. There’s the treadle lathe by Chester Knight (the article is written by Jim Ritchey, editor and illustrator of “Methods of Work”) in FWW #15. The lathe, made of ash, has beautiful wishbone legs. Only the headstock and tailstock spindles and the flywheel shaft and crank are metal. In the same issue is a foot powered lathe by Richard Starr in FWW #15. Starr’s lathe works something like a spring pole lathe, but uses a bicycle freewheel so that the spindles always turn in the same direction. He uses a bicycle chain in place of the rope, and a metal spring in place of the pole. Then there is the bowl lathe by Donald C. Bjorkman in FWW 31. It has a 74 in. outboard swing. It can also be used as a standard lathe, with a 17 in. swing over the bed.
Build a stroke sanderOf course, you’ve got to prep your projects for finishing, but a drum sander can’t do everything. So, you might to build the stroke sander by A. W. Marlow in FWW #29. Most hobbyist don’t even think about owning a stroke sander, which is really a huge belt sander. They can be very expensive. I’d bet you could still make one for much less than you could buy one. For curved parts, you’d need an oscillating spindle sander, like the one built by Joseph E. Konkle in FWW #87. It’s a nice design with good execution.
Dress a drum sander to the nines

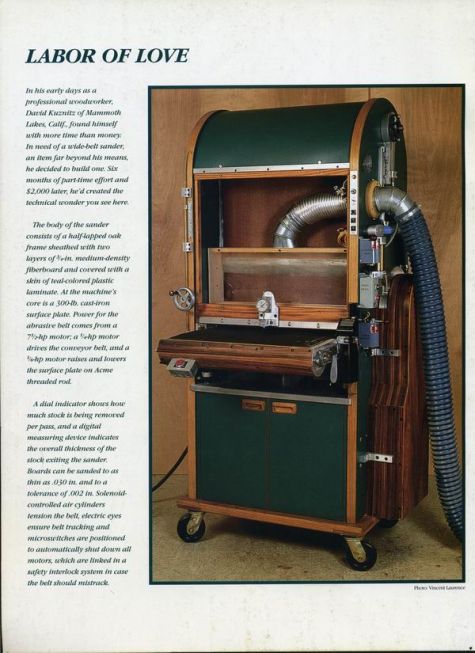

The back cover of Fine Woodworking has always been a place to display the spectacular. The back cover of FWW #105 is no exception. That’s were you’ll find David Kuznitz’s shopmade drum sander. It has it all. There’s the 300 lb. cast iron table, a 7 1/2-HP motor for the drum, a 1/4-HP motor for the belt that moves the stock, and 1/6-HP motor to raise and lower the table (how else would move a 300 lb. plate of iron up and down?), and some kind of digital measuring device that tells you the thickness of your workpiece as it leaves the sander. Kuznitz says that it cost $2000 to build the sander (in 1994). (Thanks to Dean7 for pointing this one out.)
I know that most of these machines now can be had for a reasonable price. But even if you wouldn’t even think of building one, you’ve got to admire the moxy these woodworkers showed. I know I do. I’ve made several handtools and it can be tough. Making a woodworking machine is a serious engineering and construction challenge. Bully for them for getting it done.
If you’ve made a woodworking machine, tell us about below.
